IRD

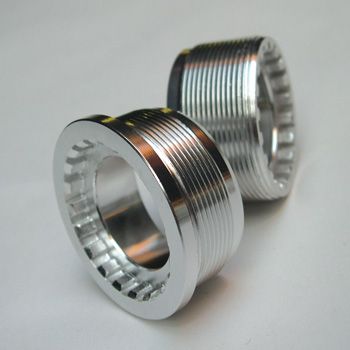

IRD BB Cups English Pair

- Retrofit IRD QB-55 or QB-75 bottom brackets to work with Englisg threaded frames
- Fits on Sugino CBB-F103
- May work with Tange-Seiki, and other BB brands as well

IRD BB Cups Italian Pair

- Retrofit IRD QB-55 or QB-75 bottom brackets to work with Italian threaded frames
- Fits on Sugino CBB-F103
- May work with Tange-Seiki, and other BB brands as well

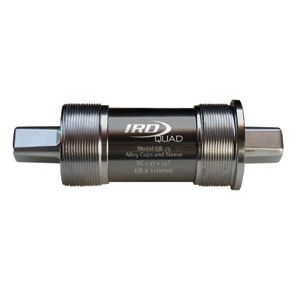

IRD BB QB75 68 ( Eng ) or 70 ( It ) x103 square tape
Please specify if you want English or Italian cups.

The MCX Max TA is a monster cross/gravel carbon fork with clearance to fit 29 x 2.1" tires and 27.5" x 2.25" tires. Extra long 350mm aluminum steerer (Most carbon forks have steerers only 280-300mm long)

(There is also two lighter MCX models that have straight 1-1/8" steerers and is available in QR or thru-axle. )

– Axle to crown: 406mm
– Rake: 50mm
– 15mm thru-axle w/QR
– Brake mount: Flat mount disc
– Internal cable routing
– Triple accessory bosses
– Single set of fender eyelets
– Steerer: Aluminum, 1-1/8"-1-1/2" tapered x 350mm
– Weight: 970g (including thru-axle and extra long uncut steerer)
– Matte Black finish

The MCX QR is a monster cross/gravel carbon fork with clearance to fit 700 x 50mm tires and 27.5" x 2.1" tires

(The MCX also comes in thru-axle configuration. There is an MCX Max model that is burlier with tapered steerer, thru-axle, and even more tire clearance)

– Axle to crown: 406mm
– Rake: 50mm
– QR hub dropout
– Brake mount: Flat mount disc
– Triple accessory bosses
– Single set of fender eyelets
– Steerer: Aluminum, 1-1/8" x 350mm
– Weight: 760g
– Matte Black finish

The MCX TA is a monster cross/gravel carbon fork with clearance to fit 29 x 2.0" tires and 27.5" x 2.1" tires. Extra long 350mm steerers fit most 62+cm frames

(The MCX also comes in a configuration for standard QR hubs. There is an MCX Max model that is burlier with tapered steerer, thru-axle, and even more tire clearance)

– Axle to crown: 406mm
– Rake: 50mm
– 15mm thru axle
– Brake mount: Flat mount disc
– Triple accessory bosses
– Single set of fender eyelets
– Steerer: Aluminum, 1-1/8" x 350mm
– Weight: 870g (Including thru-axle and uncut steerer)
– Matte Black finish

IRD Mosaic Carbon Fork Aluminum Steerer 1-1/8in. 45mm Rake

- Curved blade carbon fork with alloy crown. Fits short reach(39mm-49mm) caliper brakes
- 368mm axle to crown
– 300mm aluminum steerer tube

Quick release downtube cable housing stops allow you to easily lubricate shift housing without unbolting them from the frame. Machined barrel adjusters offer precise, ergonomic adjustments on the stand or on the road. Mounts to downtube shifter bosses. Sold as a pair.

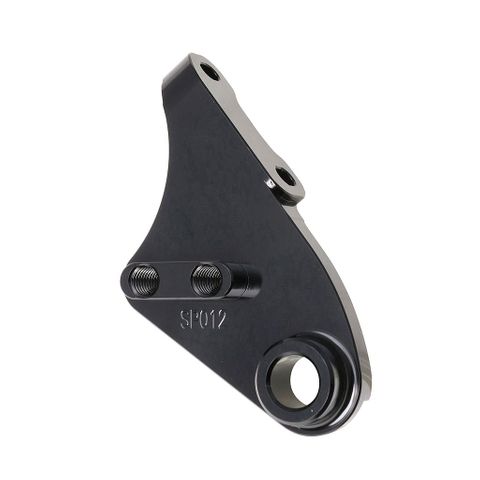

Left side insert for IRD Sliding Dropouts. Flat mount installs inboard of seatstay, not chainstay. 12mm thru-axle compatible. For 140mm rotor (add adapter to fit 160mm)

Allows older thru-axle compatible Soma Wolverines, Juice and Riff frames to use flat mount brakes.
