Chris King BB Threadfit24 Tool
Description

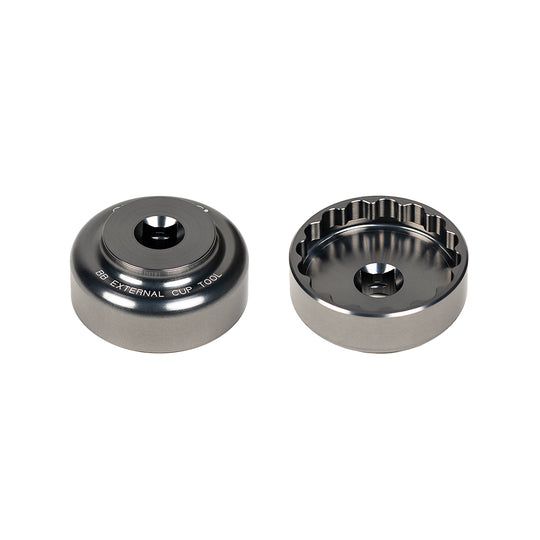

For installation of the bottom bracket we offer the Chris King BB External Cup Tool. Our cup tool is anodized aluminum and features a 3/8" socket drive and recommend use with a high-quality torque wrench. The spline interface is precision made to match our bottom bracket cups ensuring a secure fit during installation while preventing finish damage.
Fits Threadfit 24
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-1526OBStock Code:WMTL-1728OBStock Code:WMTL-2437OBStock Code:WMTL-27537OBStock Code:WMTL-6000OBStock Code:WMTL-6001OBStock Code:WMTL-6002OBStock Code:WMTL-6003OBStock Code:WMTL-6801OB-1Stock Code:WMTL-6802OB-1Stock Code:WMTL-6803OB-1Stock Code:WMTL-6804OBStock Code:WMTL-6805OBStock Code:WMTL-6806OBStock Code:WMTL-6900OB-1Stock Code:WMTL-6901OB-1Stock Code:WMTL-6901OB-2Stock Code:WMTL-6902OBStock Code:WMTL-6903OBStock Code:WMTL-6904OBStock Code:WMTL-GXP-LEFT
Open Bore adapters, also known as drifts, are used to press cartridge bearings in to bottom bracket cups, hub shells, freehub bodies and suspension frame pivots. Each adapter has a smaller diameter that inserts in to the center of a bearing, and a larger diameter section that matches the outside diameter of the bearing. When used with a bearing press, the adapter presses against the races of the bearing, properly aligns the bearing and prevents damage as the bearing is pressed in.
Our 1526 open bore adapter is used to press 26x15 sealed bearings. The adapter is machined with one step at 15mm OD, which fits in to the center of the sealed bearing.
Installs: 15267, 15268 bearings
Inner Step Outer Diameter: 14.8mm
Outer Diameter: 25.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations)Expected Date:15 December 2026$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$21.00 (RRP) -
Stock Code:WMTL-BP0021
Thin Flange Bottom Bracket Sockets Designed to create a tight grip on thin flange bottom brackets to avoid slipping while torquing cups into bike frames. These single-sided sockets are used for installing and removing 48.5mm, 16-notch, 54mm 16-notch and 54mm 12-notch bottom bracket cups.
The sockets have a machined 3/8" drive, which can be used to allow 3/8" drive torque wrenches to be attached and locks onto 1/2 inch UNC press rod for secure and easy installation of thin flanged bottom brackets. Machined 6061 Aluminum Anodized Red
Kit includes:
(1) 1/2" UNC Threaded Rod
(1) 1/2" Adjustable Press Stop
(1) 6806/29 Bearing Drift
(1) 6806 Bearing Drift
(1) 24x37 Bearing Drift
(1) Wheels MFG Thin Flange Bottom Bracket Socket for 48.5mm, 16-notch pattern.
(1) SRAM Thin Flange T47 Bottom Bracket Socket for 54mm 16-notch pattern.
(1) Praxis Thin Flange T47 Bottom Bracket Socket for 54mm 12-notch pattern.$345.00 (RRP)Add To Cart
-
Stock Code:PDTL6460270
Flat Wrench For 8-Notch Shimano® and ISIS Drive® BB Cups
Precision laser cut design with ergonomic cushioned TPR grip and 3/8" drive for use with torque wrenches.
Superior material and optimized heat treatment outlast the competition.
Fits 8-Notch Shimano® Octalink and ISIS Drive® Bottom Bracket Cups. Interface has 42mm OD (cup clearance) and 37mm ID (tooth inside diameter).
Pedro's Pro BB flat wrenches are made from 4mm thick, precision laser cut, heat-treated tool steel for maximum strength and lasting performance. Features an ergonomic single-ended design with cushioned TPR grip for leverage & comfort and fits 8-Notch Shimano® Octalink and ISIS Drive® Bottom Bracket Cups.$42.00 (RRP)Add To Cart
-
Stock Code:ABTL-SOCKET-SS-12BSA30
Made with the same top shelf aluminum alloy, to the same exacting fit and tolerance as the rest of the socket range, these sockets won't chew up your shiny new bottom bracket.
Compatible with:
Race Face Cinch
Sram DUB for 68/73mm shells
Zipp Vuma Quad
Rotor BSA 30
Cane Creek Hellbender (mfg 2021 and later)
If the bottom bracket has 12 notches and a 29 or 30 millimeter spindle and isn't made by Chris King, this is probably the right tool.
Made in Bend Oregon.$76.00 (RRP)Add To Cart
-
Stock Code:ABTL-SOCKET-SS-TT
Made with the same top shelf aluminum alloy, to the same exacting fit and tolerance as the rest of our socket range, these sockets won't chew up your shiny new bottom bracket.
Compatible With:
Enduro TorqTite
Kogel T47
Sram DUB T47
Ceramic Speed T47
White Industries T47
Made in Bend Oregon
This socket features a threaded boss to allow you to bolt the tool into place when dealing with these exceptionally thin tool interfaces. This is a unique feature to our tools that adds a layer of protection and security to your parts and tools. M6 thread pitch inside, same as our Geiszler.$76.00 (RRP)
