Wheels MFG T47 A/C OUT BB SRAM Black
Description

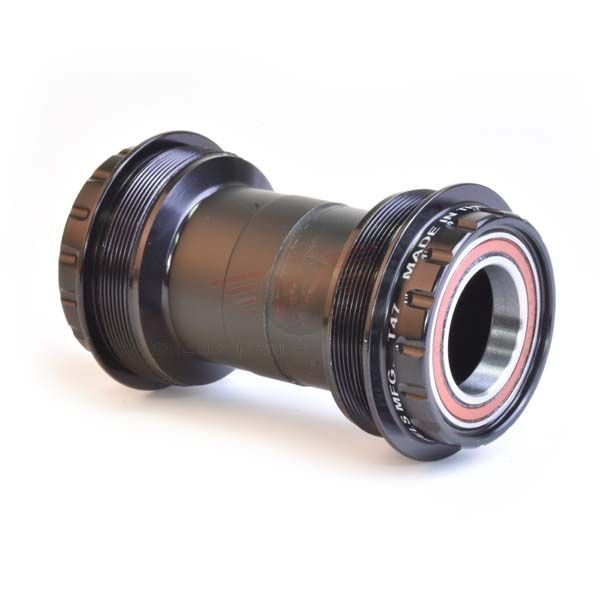

T47 threaded BB cups for T47 frames and 22/24mm diameter spindle cranks. Cups have outboard bearings, and are typically used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-BB86-OUT-SRAM7
Our new BB86/92 thread together bottom bracket is a technical advancement of our well-loved slip fit BB86 bottom brackets. The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Directly replaces all OEM BB86/92 bottom brackets. Overall width is still the same as all other BB86 bottom brackets.
Notes:
* Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
** Wheels Mfg BB86 Outboard BB for use with 24/22mm spindle cranks will not work with Quarq SRAM/GXP cranksets (Elsa, Riken, SRAM Red 22, SRAM S975, SRAM S2275, CinQo Saturn, Saturn2). If your Quarq spider has an ID less than 49.5mm, it will not fit over our BBRIGHT-OUT cup.
*** The new Quarq DZero powermeter spiders will work with Wheels Mfg BB86-OUT BBs
Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: BB86, BB92
Bottom Bracket Shell Width (mm): 86mm, 92mm, 89.5mm
Bottom Bracket Shell I.D.: 41mm
Crank Spindle Type: SRAM / Truvativ GXP
Crank Spindle Diameter: 22/24mm$216.00 (RRP) -
Stock Code:WMBB-DRT-KIT
Wheels MFG Bottom Bracket/Drivetrain 120 piece spacer kit
•(20) 1.0mm FW Spacers •(10) 1.5mm FW Spacers •(10) 2.0mm FW Spacers •(10) NCS-4.5mm Cassette Spacers •(10) SHIM-.3MM BB30 Spacers •(10) SHIM-.5MM BB30 Spacers •(6) .7mm BB30 Shims •(6) 1.8mm BB30 Shims •(9) 2.5mm BB30 Shims •(4) BB30-CLIPs •(4) BB30/PF30 Wave Washers •(4) GXP Wave Washers •(4) .7mm Bottom Bracket Spacers •(4) 1.8mm Bottom Bracket Spacers •(9) 2.5mm Bottom Bracket Spacers$299.00 (RRP)Add To Cart
-
Stock Code:WMBB-BB-29MM-0.5Stock Code:WMBB-BB-29MM-1.0Stock Code:WMBB-BB-29MM-2.5-5
Used to adjust crank chainline or take up any slack when using 29mm (SRAM DUB) spindle cranks.
- 29mm I.D.
- 2.5mm thick
- 5 spacers per bag
- Machined engineering-grade Delrin.$29.00 (RRP)$29.00 (RRP)$29.00 (RRP) -
Stock Code:CKBB-ABB1Stock Code:CKBB-ABR1Stock Code:CKBB-ABS1Stock Code:CKBB-ABBYStock Code:CKBB-ABY1Stock Code:CKBB-ABM2Stock Code:CKBB-ABT2Stock Code:CKBB-ABP1Stock Code:CKBB-ABZ2
** FIT KIT REQUIRED FOR USE **
ThreadFit 30 comes with a Center Sleeve for 73mm BB shell. For 68mm shell - sleeve is required(included in Fit Kit #2 for DUB Road cranks).
ThreadFit 30 bottom bracket is silky smooth and long-lasting thanks to legendary, angular-contact bearings. They actually get faster over time as their contact surfaces wear, because they are build to ultra-tight aerospace tolerances, using machined, Delrin-spindle sleeves to create a perfect, and precise fit between cranks and frame. That’s where the low drag and butter smooth feel come from.
You want this bottom bracket because it offers super low drag. You want this bottom bracket, because it can be opened, cleaned and repacked for years of faithful service. You want this bottom bracket, because you don’t want to think an awful lot about your bottom bracket.
- Engineered, manufactured and assembled in Portland, Oregon USA
- King Lifetime Warranty
- Legendary made-in-house bearings
- A Fit Kit is required for use
- Uses Chris King bottom bracket cup tool for installationExpected Date:27 June 2025Expected Date:27 June 2025Expected Date:27 June 2025$349.00 (RRP)$349.00 (RRP)$349.00 (RRP)$399.00 (RRP)$349.00 (RRP)$349.00 (RRP)$349.00 (RRP)$349.00 (RRP)$349.00 (RRP) -
Stock Code:BBBB-T47-68/73-30-B5
The Blackbearing bottom bracket range has been specifically developed to withstand the most extreme conditions.
The BBlock technology (built in 2 threadable parts) allows a better alignment of the casing in its assembly offering several advantages:
- minimizes possible cracks
- greater protection to the bearing extending its useful life
- an easier replacement of the bearing.
CNC machined aluminum.$142.78 (RRP)Add To Cart
