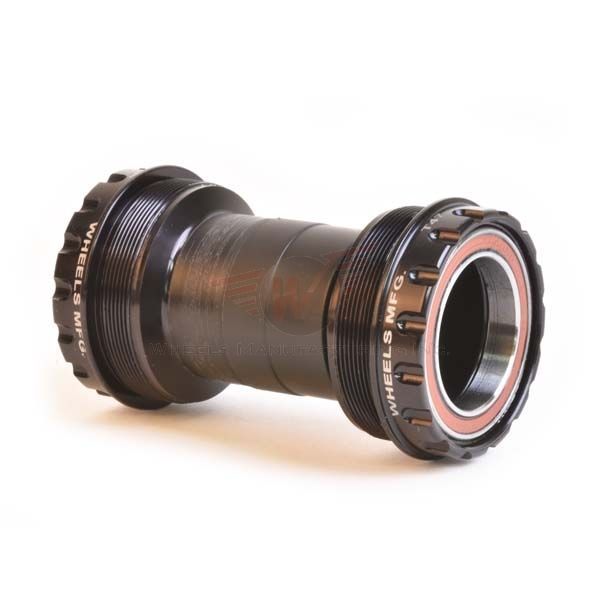

Wheels MFG T47 A/C OUT BB 30mm Black
Description
T47 threaded BB cups for T47 frames and 30mm diameter spindle cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-PF30-0.5MM-10Stock Code:WMBB-PF30-1.0MM-10
Used to adjust crank chainline or take up any slack when using 30mm, 24mm (Shimano, FSA, etc.) or 24/22mm (SRAM/TruVativ) Spindle Cranks in any BB30/PF30/BB86/92 or similare crank system.
- 24mm I.D. for use with cranks like Shimano HollowTech II, GXP, FSA
- 30mm I.D. for use with BB30 cranks
- 10 spacers per bag
- Machined engineering-grade Delrin$29.00 (RRP)$29.00 (RRP) -
Stock Code:WMBB-BBRIGHT-OUT-1
The new BBRight™ Outboard bottom bracket will give you all of the same benefits as our well-loved Outboard style BBs. The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BBRight™ Press Fit
Bottom Bracket Shell Width (mm): 79mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Type: Shimano Hollowtech II, FSA MegaExo, RaceFace EXI
Crank Spindle Diameter: 24mmExpected Date:07 May 2026$235.00 (RRP) -
Stock Code:WMBB-386EVOBB-SRAMACStock Code:WMBB-386EVOBB-SRAMBBStock Code:WMBB-386EVOBB-SHIMStock Code:WMBB-386EVO-BBStock Code:WMBB-386EVO-BB-ACStock Code:WMBB-386EVO-CER-ZEROStock Code:WMBB-386EVO-BB29MMStock Code:WMBB-386EVOBB-PRXStock Code:WMBB-386EVOBB-SHIMAC
Threaded BB for 386EVO frames. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.
No more creaking. Smooth operation. Fast bearing replacement.
** Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).**
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BB386EVO
Bottom Bracket Shell Width (mm): 86.5mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Weight: 126g
*Will accept 24mm and 24/22mm cranksets using Wheels Mfg. 386EVO BB / Crank AdaptersExpected Date:07 May 2026Expected Date:07 May 2026$259.00 (RRP)$235.00 (RRP)$225.00 (RRP)$235.00 (RRP)$259.00 (RRP)$445.00 (RRP)$235.00 (RRP)$235.00 (RRP)$259.00 (RRP) -
Stock Code:BTBB-4055822522090
Seido T47 BBs are machined to precision with the highest quality aluminium and bearings. They will fit 30mm spindle cranks with the included washers, or can be fitted with our adaptor kits to accept other sizes as well.
The internal provides room for internal cable routing. Servicing or replacing bearings is an easy job thanks to a great accessibilty of the bearing races, even when still fitted inside the frame. Outer seals provide extra protection for the already double-sealed bearings.
Uses 2x 6808 bearings (30x40x7mm, ID x OD x t).
SUITABLE BB SHELL WIDTH
68mm - 73mm
Includes 2 x 1.5 mm, 4 x 1 mm, 1x wave washer Removable Nylon Sleeve Adaptable to 24 and 24 / 22 mm with our spindle adapters$120.00 (RRP)Add To Cart
-
Stock Code:WTBB-T47I-24-BLKStock Code:WTBB-T47I-24-ORGStock Code:WTBB-T47I-24-PRUStock Code:WTBB-T47I-24-RSILStock Code:WTBB-T47I-29-BLKStock Code:WTBB-T47I-29-ORGStock Code:WTBB-T47I-29-PRUStock Code:WTBB-T47I-29-RSILStock Code:WTBB-T47I-29-BLUStock Code:WTBB-T47I-29-ESPStock Code:WTBB-T47I-29-GLDStock Code:WTBB-T47I-29-OLVStock Code:WTBB-T47I-29-REDStock Code:WTBB-T47I-30-BLKStock Code:WTBB-T47I-30-ORGStock Code:WTBB-T47I-30-PRUStock Code:WTBB-T47I-30-RSIL
Wolf Tooth T47 Internal Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 85.5mm - 92mm T47 Internal bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 52-16 spline tool or BBS5216
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)
