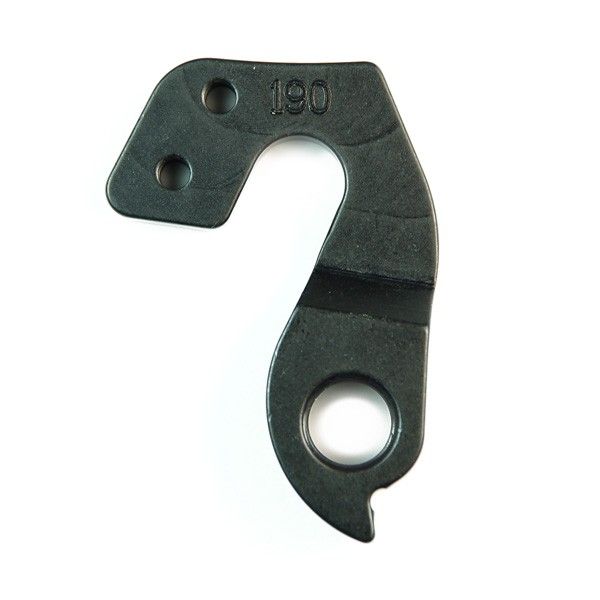

DH190 BH
Description
Attaches to frame with (2) M4x10 Flat Head Screws
Fasteners included
BH
G5 -
G6 -
RX-1 -
Ultralight -
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMDH-334
Attaches to frame with (2) M3x12 Flat Head Screw
Fasteners not Included
Replaces BMC Hanger #37 (Part #212177)
BMC
Grandfondo GF01, GF02 - 2014+
Grandfondo GF01 Disc, GF02 Disc - 2014+
Alpenchallenge AC01, AC02 - 2014+
Crossmachine CX01 - 2017+Stock Level:In StockStock Level:In Stock$63.00 (RRP)Add To Cart
-
Stock Code:WMDH-398
- CNC machined 6061 aluminum
- Black anodized finish
- Attaches to frame with (1) M4x20 Flat Head Screw
Donnelly
C//C - All
G//C - All
Kestrel
TERX - 2018+Stock Level:In StockStock Level:In Stock$75.60 (RRP)Add To Cart
-
Stock Code:SADH-FS1377
Salsa Alternator 1.0 Plate Right QR Single Speed with Fender Mounts
- 5mmx.8mm threaded mounts for fender stays
- Not compatible with rear racksStock Level:2Stock Level:2POA -
Stock Code:WTDR11S44-GLINK
The GoatLink 11 hanger extension offsets the position of your 11-speed Shimano mountain bike rear derailleur allowing you to be able to run a wider range cassette while improving performance.
- Same ergonomics and reliability of Shimano shifters and derailleurs
- Gear range, simplicity and quietness of SRAM 1x11 drivetrain
- High-performance and lightweight
This project began with the desire to run 11-speed Shimano derailleurs and shifters with SRAM 10-42t XD cassettes. Granted the combination can work without modification - but performance wasn't quite what we'd expect from Shimano and SRAM's finest.
When used with a 10-42t cassette, the GoatLink 11 re-positions SLX M7000, XT M8000 and XTR M9000 rear derailleurs such that free chain length between the cassette and the top derailleur pulley is within 1% of what Shimano intended while cassette tooth engagement in the smallest cog is improved by 27%.
Knowing that certain situations call for a range beyond that provided 10-42t or 11-42t cassettes, we tweaked the GoatLink 11 to also significantly improve Shimano 11spd rear derailleur performance with extended-range like the Wolf Tooth GCX44 modified 10-44t XX1 or X01 cassette.
Compatibility
Cassette • Compatibility
11-40 • Not Required
11-42 • Not Required
11-45 • GS/SGS Derailleur
11-46 • GS/SGS Derailleur
10-42 • GS/SGS Derailleur
10-44 • GS/SGS Derailleur (Wolf Tooth GCX44)
10-45 • Not Optimized
9-44 • Not Optimized
Other notes:
- The GoatLink 11 is compatible with SLX M7000, XT M8000 and XTR M9000 series 11-speed Shimano rear derailleurs.
- The GoatLink 11 mounts only to standard derailleur hangers.
- Double chainrings (2x) is supported and requires a long cage (SGS) rear derailleur with no more than a 12t difference in front chainrings (with an 11-46t cassette).
- Triple chainrings are not supported.
- Direct Mount native frames and SRAM derailleurs are not supported.Stock Level:1Stock Level:1$59.20 (RRP)Add To Cart
-
Stock Code:WMDH-557
All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.
- CNC machined 6061 aluminum
- Marin: Hanger # 38
- Thru Axle
Marin:
Cortina - 2018-2021
Four Corners Elite - 2016-2019
Gestalt 3 - 2016-2018
Mount Vision - 2019-2020
Pine Mountain 2 - 2016-2020
Wolf Ridge - 2017-2019
Xquarone DH8 - 2018-2020
Xquarone DH9 - 2018-2020
Xquarone EX7 - 2017-2020
Xquarone EX8 - 2017-2020
Xquarone EX9 - 2017-2020Stock Level:In StockStock Level:In Stock$63.00 (RRP)Add To Cart
