Wheels MFG PF41mm AC Fat Bike BB Shimano
Description

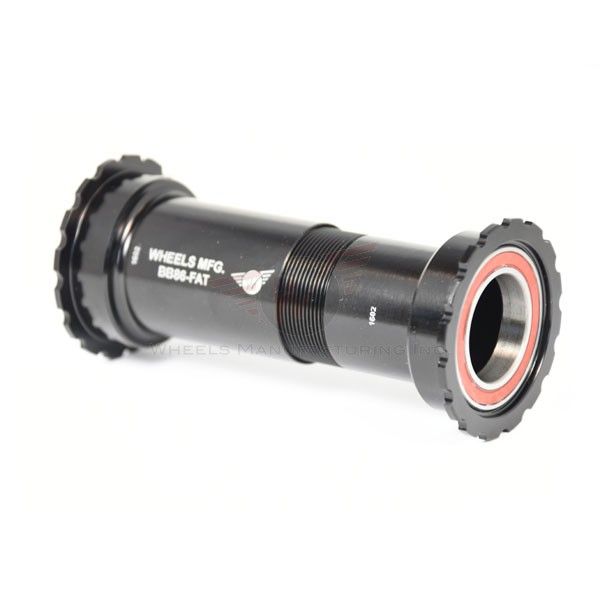

PRESSFIT 41MM ANGULAR CONTACT FAT BIKE BB FOR 24MM (SHIMANO) CRANKS - BLACK
BB86 threaded BB for Fat Bike PF41.
Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.
No more creaking. Smooth operation. Fast bearing replacement.
This is a fat bike bottom bracket! Your frame must have a 41mm inner diameter bottom bracket shell, with a width of 121mm or 132mm.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-T47-BB-SHIM-AC
T47 threaded BB cups for T47 frames and 24mm diameter spindle cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.$247.00 (RRP) -
Stock Code:WMBB-BB86BB-PRX
Expand your choice of cranks for use in frames with 41mm ID shells. Replace your bottom bracket with these dual-row flanged bearings and run 28/30mm spindle Praxis - Compatible cranks in your frame. These bearings fit directly in frames with 41mm ID bottom bracket shells. Crankset spindle length must be longer than 104mm when used in a 86.5mm wide BB shell.
Complete kit for one frame
Includes:
(2) - Enduro BB86 to 30MM Dual-Row ABEC-3 Bearing
(2) - 0.5mm crank spacer
(2) - 1.0mm crank spacer
(2) - 5.0mm crank spacer
(2) - Dust seals
(1) - 28mm spacer inse$327.00 (RRP)Add To Cart
-
Stock Code:WMBB-BB-MTB-1Stock Code:WMBB-BB-MTB-1-6Stock Code:WMBB-BB-MTB-1-3Stock Code:WMBB-BB-MTB-1-7Stock Code:WMBB-BB-MTB-1-1Stock Code:WMBB-BB-MTB-1-5
Wheels Manufacturing standard outboard bottom bracket features Enduro ABEC 3 sealed bearings. Compatible with 24mm (Shimano, FSA, Etc.) cranks. Fully serviceable.
Weight: 98g
Road (68mm Shell width) - Grey anodized, machined aluminum cups
Mountain (73mm Shell width) - Black or Red anodized, machined aluminum cups
Enduro ABEC 3 sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm spindle (Shimano, FSA, Etc.) cranks$184.00 (RRP)$184.00 (RRP)$184.00 (RRP)$184.00 (RRP)$184.00 (RRP)$184.00 (RRP) -
Stock Code:CKBB-ADB2Stock Code:CKBB-ADS1Stock Code:CKBB-ADB1Stock Code:CKBB-ADM2Stock Code:CKBB-ADP1
** FIT KIT REQUIRED FOR USE **
ThreadFit™ T47 24x fits 68mm and 73mm shell widths with 24mm spindles.
It’s a silky smooth, long-lasting bottom bracket built around King’s legendary, angular-contact bearings, either steel or ceramic. These are the best bearings in the industry, and actually get faster over time, as their contact surfaces wear.
You want this bottom bracket because it offers super low drag. You want this bottom bracket, because it can be opened, cleaned and repacked for years of faithful service. You want this bottom bracket, because you don’t want to think an awful lot about your bottom bracket.
- King Lifetime Warranty
- Legendary made-in-house bearings
- Threaded security with PressFit 30 shell stiffness
- A Fit Kit is required for use
- Engineered, manufactured and assembled in Portland, Oregon USA
- Uses Chris King bottom bracket cup tool for installationExpected Date:27 June 2025Expected Date:27 June 2025$349.00 (RRP)$349.00 (RRP)$349.00 (RRP)$349.00 (RRP)$349.00 (RRP) -
Stock Code:WTBB-T47I-30-RSIL
Wolf Tooth T47 Internal Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 30mm spindle cranksets
- Adjustable-width sleeve fits 85.5mm - 92mm T47 Internal bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 52-16 spline tool
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 30mm spindle spacers$270.00 (RRP)Add To Cart
