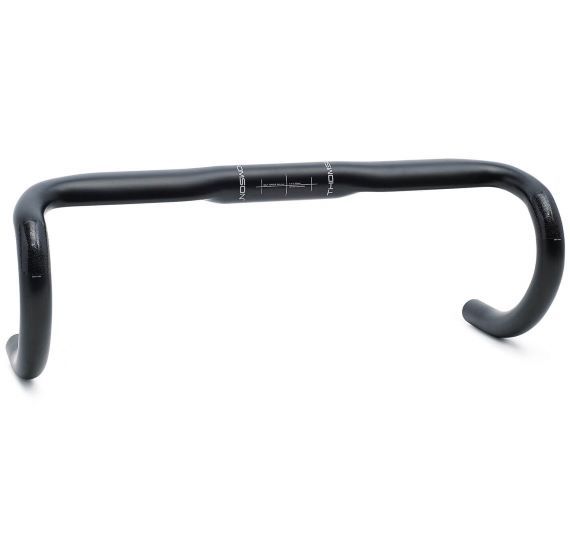

Thomson Road Carbon 46cm
Description
Our road bar features a mild wing shape on top, clamping area wide enough for aero bars, mid-compact reach and drop. This is the modern bar for the modern road bike. Our Road bar wing section is small enough not to restrict hand movement when riding on the top and allows bar angle adjustment with out “locking out” your wrists. Shaping on the bottom side of the wing allows housing to be taped out of the way without the use of narrow housing channels or internal routing, both of which shorten bar life. Certified to EN, tested to DIN+.
Layup uses 3 different fiber types with different tensile strengths and tensile modulus, including High Strength carbon fiber. This helps allocate stiffness and flex where needed.
All carbon fiber is produced by Toray and uses tailor made Nano Epoxy Resin for very high impact resistance. Toray is the main supplier of carbon fiber for Boeing and Airbus.
Both the Road and Cross bar are made in one piece, not three pieces co-molded and glued together.
Bars are molded over an EPS mandrel to avoid wrinkles inside the layup during molding. Most other bars are molded over inflatable nylon bladders.
1.5K woven impact ends help prevent damage to uni-directional fibers from impact.
Reach 78.5mm.
Drop is proportional. Road drops are: 40CM 137mm, 42CM 140mm, 44CM 140mm, 46CM 143mm
Webshops and Bike shops
You may also be interested in...
-
Stock Code:PSHB-SM1071Stock Code:PSHB-SM1070Stock Code:PSHB-SM5701Stock Code:PSHB-SM5319$19.00 (RRP)POAPOAPOAPOA
-
Stock Code:TNHB-HB-E115Stock Code:TNHB-HB-E132Stock Code:TNHB-HB-E133Stock Code:TNHB-HB-E134
800mm wide, 20mm of rise, 9° of backsweep and 5° of upsweep. Built using 7050 Aluminum alloy for strength and long life. 65mm wide clamping area to fit our Direct Mount stem, giving you the most torsional stiffness of any bar/stem combination. 31.8 center section is absolutely straight over a width of 90mm. The long straight section in the middle reduces stress concentrations, especially when using wide Direct Mount stems
Bar is butted and tapered in many steps for optimal fatigue life. Ends of the bar are thickened from 1.4 to 1.6mm to resist damage from impacts and contact with the ground.
Bar is produced by advanced CNC bending to avoid the need for hand grinding. Almost all other bars are manually bent and bends are ground to appear smooth. CNC bending ensures very consistent wall thickness and close tolerances, especially in tapered sections. This keeps weight low and fatigue life high.
Weight 295 g
The perfect addition to your Elite X4 Stem or Direct Mount Stem.$199.00 (RRP)$215.00 (RRP)$215.00 (RRP)$215.00 (RRP) -
Stock Code:SLHB-HB8277Stock Code:SLHB-HB8278Stock Code:SLHB-HB8279Stock Code:SLHB-HB0643Stock Code:SLHB-HB0644
Designed to combine what’s good about drop bars with the benefits of a riser, the Truck Stop Bar offers welcome relief to the road-weary traveler. Just like with a standard drop bar, you’ll have multiple hand positions at your disposal so you can stay comfortable and in control for the long haul down the Big Slab. And if it’s a more relaxed, upright riding position you’re after, 30mm of rise will get you there. So, if you’ve accidentally or intentionally cut your steer tube too short, here’s your chance at redemption. Also suitable for taller riders who’ve exhausted all other options for rise, it comes in three widths of 42, 45, and 48cm. Lightweight aluminum construction, CB radio not included.
Specifications:
Material: Aluminum
Clamp Diameter: 31.8mm
Width: 42cm, 45cm, or 48cm
Rise: 30mm
Sweep Angle: 12 degrees
Color: E.D. coated black$130.00 (RRP)POAPOAPOAPOAPOA -
Stock Code:RSHBRS-60-09Stock Code:RSHBRS-60-10Stock Code:RSHBRS-60-01Stock Code:RSHBRS-60-04Stock Code:RSHBRS-60-02Stock Code:RSHBRS-60-05Stock Code:RSHBRS-60-03Stock Code:RSHBRS-60-06Stock Code:RSHBRS-60-07Stock Code:RSHBRS-60-08
The gravel bike handlebar that has everything but the kitchen sink.
If you are looking for comfort, control, and convenience the Kitchen Sink Gravel Bike Handlebar is for you. With widths from 41cm up to 53cm, these wide and flared gravel handlebars cover the full range of riders and enhance stability and control while at the same time providing a variety of really comfortable hand positions.
KEY Gravel Handlebar Features:
• 20mm of RISE means less pressure on the hands and a broad range of fit options to accommodate a variety of gravel riding conditions.
• 7° degrees of SWEEP means the bar is positioned where your hands want to be, whether you're on the flats, the hoods or the drops during your most epic gravel ride.
• 25° degrees of FLARE and a Compact Drop means a stable, aerodynamic drop position creates an aero gravel bar setup that is actually comfortable enough to use on your longest gravel ride or your next bikepacking trip.
Why are Your Gravel Handlebars Flared?
Gravel handlebars are designed to seek a balance between the traditional wide flatbars which offer stability and control over rough terrain and the comfort and speed of road bike drop bar position without sacrificing control. Our gravel handlebars are flared in the drops to give the rider a stable and more controllable riding position that is essential for gravel biking terrain. This combination of comfort and control allows you to ride longer, farther and faster and is well suited for everything from short group rides to long distance multi-day bikepacking trips.
Gravel Bar Styles
Choose between two gravel bar styles: LOOP and a more traditional NON-LOOP. The Loop version provides an alternative riding position, a great place to attach gear, and the perfect spot for our new storage solution: the Kitchen Sink Gravel Handlebar Bag. The bag was designed specifically to fit in the loop and allow easy (single hand) access to all your essentials for bikepacking and long gravel rides. In addition, we created a Computer Mount that attaches to the top of the bag to give you a secure and ideally located spot for your Garmin or Wahoo bike computer.
To get even more comfort and performance out of your Kitchen Sink Gravel Bar, add the ergonomic Cruise Control Grip System. The Top Grips provide an incredibly comfortable position at the tops by expanding the bar and giving you a wide area to rest your hands. And the Drop Grips give you an extra comfortable position while in the drops through an ergonomic style grip that helps spread load over your hands so you can stay in your tuck all day.
Top it all off with some of our Really Long Bar Tape which is specifically designed to be long enough to wrap even the widest gravel handlebar. Oh and it's super comfortable with just the right amount of grip.$199.00 (RRP)$255.00 (RRP)$199.00 (RRP)$255.00 (RRP)$199.00 (RRP)$255.00 (RRP)$199.00 (RRP)$255.00 (RRP)$199.00 (RRP)$255.00 (RRP) -
Stock Code:RSHBRS-60-21Stock Code:RSHBRS-60-26Stock Code:RSHBRS-60-22Stock Code:RSHBRS-60-27Stock Code:RSHBRS-60-23Stock Code:RSHBRS-60-28Stock Code:RSHBRS-60-24Stock Code:RSHBRS-60-29Stock Code:RSHBRS-60-25Stock Code:RSHBRS-60-30
The gravel bike handlebar that has everything but the kitchen sink.
If you are looking for comfort, control, and convenience the Kitchen Sink Gravel Bike Handlebar is for you. With widths from 41cm up to 53cm, these new low flare gravel handlebars can aid stability and control but at the same time provide really comfortable hand positions.
KEY Handlebar Features:
• 20mm of rise means less pressure on the hands and a broad range of fit options to accommodate a variety of gravel riding conditions.
• 7° degrees of sweep means the bar is positioned where your hands want to be, whether you're on the flats, the hoods or the drops during your most epic gravel ride.
• Low Flare (10° degrees) and a compact drop are perfect for road and gravel riders who prefer a more traditional road shaped bar.
Why 10 degrees?
Because it's the right balance between classic dropbar shaping and the ergonomic + comfort advantages of flare. A small amount of flare on performance road bike bars is quickly becoming a very popular option for this very reason.
Loop or Non-Loop?
Choose between two gravel bar styles: LOOP and a more traditional NON-LOOP. The Loop version provides an alternative riding position, a great place to attach gear, and the perfect spot for our custom storage solution: the Kitchen Sink Gravel Handlebar Bag. The bag was designed specifically to fit in the loop and allow easy (single hand) access to all your essentials for bikepacking and long gravel rides. In addition, we created a Computer Mount that attaches to the top of the bag to give you a secure and ideally located spot for your Garmin or Wahoo bike computer.
To get even more comfort and performance out of your Kitchen Sink Gravel Bar, add the ergonomic Cruise Control Grip System. The Top Grips provide an incredibly comfortable position at the tops by expanding the bar and giving you a wide area to rest your hands. And the Drop Grips give you an extra comfortable position while in the drops through an ergonomic style grip that helps spread load over your hands so you can stay in your tuck all day.
Top it all off with some of our Really Long Bar Tape which is specifically designed to be long enough to wrap even the widest gravel handlebar. Oh and it's super comfortable with just the right amount of grip.$199.00 (RRP)$255.00 (RRP)$199.00 (RRP)$255.00 (RRP)$199.00 (RRP)$255.00 (RRP)$199.00 (RRP)$255.00 (RRP)$199.00 (RRP)$255.00 (RRP)
