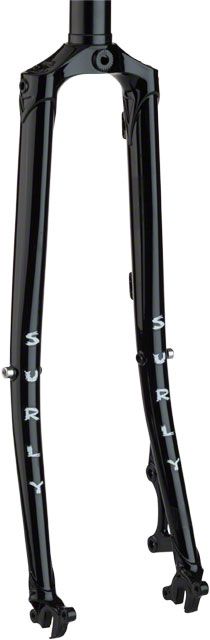

Surly Straggler 650b Disc Fork 1-1/8 Blk
Axle to Crown Length: 380 mm
Brake Mount (Fork): IS Disc Brake 160
Crown Race: 30
Defined Color: Black
Front Axle: 10mm x 100mm
Maximum Tire Clearance (Fork): 50 mm
Offset: 44 mm
Rotor Size (Fork): 160
S.H.I.S. Stem Clamp Diameter: 28.6
Steerer Tube Length (mm): 360 mm
Steerer Type: Straight
Weight: 1134 g
Wheel Size: 650b
