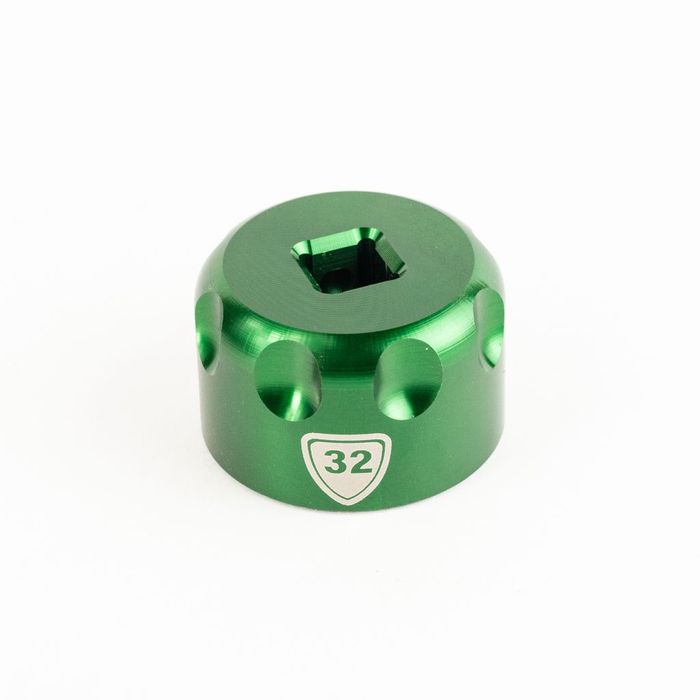

Abbey Bike Tools: Top Cap Socket 32mm
Description
Suspension service is a specialty within bicycle repair and it takes specialized tools to perform this work. One of the things that any factory tech will tell you is nice to have are sockets specifically made or altered for the low profile hex on the top of each fork leg. The lead in or chamfer on a standard socket will greatly decrease the contact between tool and part and can easily scratch or deform those nuts. For years shops have been grinding down their sockets to remove the chamfer. Problem is you're still often left with a loose fitting socket that is still prone to chewing up those delicate parts. That's why we started from scratch.
We made our sockets from billet aluminum to exacting tolerances to keep these parts in good shape. fully CNC'd machined with zero lead in, they make the specialty that is suspension service a little bit easier. They feature a 3/8" square drive for use with your favorite torque wrench as well as finger splines to help run the top caps into the fork legs with those oil soaked hands. We also kept them short (1" or 25mm for all sizes) to reduce the chance of them caming off of the top cap under torque.
Offered in a 7 individual sizes and a 6 socket set for most modern suspension forks on the market.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-1526OBStock Code:WMTL-1728OBStock Code:WMTL-2437OBStock Code:WMTL-27537OBStock Code:WMTL-6000OBStock Code:WMTL-6001OBStock Code:WMTL-6002OBStock Code:WMTL-6003OBStock Code:WMTL-6801OB-1Stock Code:WMTL-6802OB-1Stock Code:WMTL-6803OB-1Stock Code:WMTL-6804OBStock Code:WMTL-6805OBStock Code:WMTL-6806OBStock Code:WMTL-6900OB-1Stock Code:WMTL-6901OB-1Stock Code:WMTL-6901OB-2Stock Code:WMTL-6902OBStock Code:WMTL-6903OBStock Code:WMTL-6904OBStock Code:WMTL-GXP-LEFT
Open Bore adapters, also known as drifts, are used to press cartridge bearings in to bottom bracket cups, hub shells, freehub bodies and suspension frame pivots. Each adapter has a smaller diameter that inserts in to the center of a bearing, and a larger diameter section that matches the outside diameter of the bearing. When used with a bearing press, the adapter presses against the races of the bearing, properly aligns the bearing and prevents damage as the bearing is pressed in.
Our 1526 open bore adapter is used to press 26x15 sealed bearings. The adapter is machined with one step at 15mm OD, which fits in to the center of the sealed bearing.
Installs: 15267, 15268 bearings
Inner Step Outer Diameter: 14.8mm
Outer Diameter: 25.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations)Expected Date:02 November 2026$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$21.00 (RRP) -
Stock Code:WMTL-SP-GAUGE-1
The Wheels Manufacturing Seatpost Gauge is the quick, accurate tool for determining the inside diameter of your bike’s seat tube, so you can identify the correct seatpost size without guesswork.
Made from durable acrylic, this gauge is built to last and sized just right for shop benches, toolboxes, and trailhead tool kits. Whether you’re a professional mechanic, shop tech, or DIY rider, it’s a simple solution that saves time and ensures proper fit. Covers 24 common seatpost sizes, from 25mm up to 34.9mm, including all the in-between sizes you’re likely to encounter.
Just insert the gauge into the seat tube until it fits snugly, no batteries, no guesswork.
Features:
- Precision-cut acrylic gauge for long-lasting use
- Measures seat tube inside diameters from 25mm to 34.9mm
- Includes common sizes: 25.0, 25.4, 25.6, 25.8, 26.0, 26.2, 26.4, 26.8, 27.0, 27.2, 27.4, 28.2, 28.6, 28.8, 29.2, 29.4, 30.0, 30.2, 30.4, 30.8, 30.9, 31.4, 31.6, 31.8, 34.9
- Compact, lightweight, and easy to use.$20.00 (RRP)Add To Cart
-
Stock Code:RLTL-LTP10
Crushproof fully featured Pro syringe with a 10ml capacity.
Can contain and dispense almost any semi-solid material.
Luer-Lock fitting accepts any attachment.
Luer-Lock Compatible
Crushproof Premium Construction
Stainless Connection Fitting with O-Ring
Replaceable O-Ring Sealing Plunger
Ergonomic Dispensing Handle
0.50ml Graduation Marks
Brass Plunger Rod with Dosing / Locking Nut
Includes Loobtoob Label (not applied)
Includes Replacement O-Rings
Guaranteed for life!$17.50 (RRP) -
Stock Code:ABTL-CHN-STD-WRPLT
Chain wear has become a little more complicated ever since 1x drivetrains have gained popularity. These drivetrains are designed to cross chain, something most of us were taught to avoid when we started riding bikes as a serious endeavor. Add to that the variables that flat top chains have brought into the market with their larger rollers and things got pretty messy. Problem is, everyone is ignoring these small but significant issues.
What are the issues with measuring chain wear? Well there's a couple of them, the biggest is the diameter difference of SRAM's flat top chains found on most of their modern drivetrains. The rollers on these chains are .010" (.254mm). Now that doesn't sound like a lot but when you do the math to convert that to a percentage of wear over 5 links that's a .2% difference. When we're replacing chains between .5-.7% of wear that .2% can easily be the difference between replacing just a chain and and entire drivetrain. But wait, there's MORE! Most chain wear tools currently on the market are laser cut metal. This is a pretty cool process that's great for making sheet metal parts, problem is the accuracy of this process isn't great at +/-.010" (.254mm). If you add the error of the tool itself to the roller variable it's possible to double the error of the tool.
The Abbey Chain Wear Plate is our latest application of precision to cycling tools. We set out to not only build a tool that handled the variance of roller diameter when measuring chain wear but also measure lateral wear, something nobody's bothered to do, until now. Linear wear or stretch as it's commonly called is measured by locating both sides of the roller in a V shaped notch which allows us to locate the center of the roller accurately regardless of it's size. Then you line up the pin on with one of 5 holes on the opposite end. This also prevents roller wear from influencing the measurement. It's as simple as that.
To measure lateral wear, the chain will need to be off the bike. Then simply pinch the chain against the boss and hold it vertical and see how far it sags. Anything below a 6 isn’t shifting well and a new chain will improve shifting quality.
The other big thing we tackled with this tool is the accuracy of the tool itself. Most chain wear tools on the market are cut with a laser, which is a nice process that we use for parts like our Fit Kit and Stu Stick. However it's not all that accurate with the repeatability of these machines can be around +/-.010. That just isn't good enough for tools of this nature to be frank. We instead made the decision to CNC our tool from a billet to give it the durability and accuracy this tool deserves. Since we actually make these in house we also had complete control over the process and are able to hold tolerances as tight as .0002"(.005mm). Admittedly, that might be a bit overkill for the application but it's not really that difficult to do, if you actually care.
The LL Chain Wear Tool is patent pending.$88.00 (RRP)Add To Cart
-
Stock Code:PDTL6462119
Precision laser cut design with ergonomic cushioned TPR grip and 3/8" drive for use with torque wrenches.
Superior material and optimized heat treatment outlast the competition.$33.00 (RRP)Add To Cart
