Abbey Geiszler Truing Stand Adaptor
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-1526OBStock Code:WMTL-1728OBStock Code:WMTL-2437OBStock Code:WMTL-27537OBStock Code:WMTL-6000OBStock Code:WMTL-6001OBStock Code:WMTL-6002OBStock Code:WMTL-6003OBStock Code:WMTL-6801OB-1Stock Code:WMTL-6802OB-1Stock Code:WMTL-6803OB-1Stock Code:WMTL-6804OBStock Code:WMTL-6805OBStock Code:WMTL-6806OBStock Code:WMTL-6900OB-1Stock Code:WMTL-6901OB-1Stock Code:WMTL-6901OB-2Stock Code:WMTL-6902OBStock Code:WMTL-6903OBStock Code:WMTL-6904OBStock Code:WMTL-GXP-LEFT
Open Bore adapters, also known as drifts, are used to press cartridge bearings in to bottom bracket cups, hub shells, freehub bodies and suspension frame pivots. Each adapter has a smaller diameter that inserts in to the center of a bearing, and a larger diameter section that matches the outside diameter of the bearing. When used with a bearing press, the adapter presses against the races of the bearing, properly aligns the bearing and prevents damage as the bearing is pressed in.
Our 1526 open bore adapter is used to press 26x15 sealed bearings. The adapter is machined with one step at 15mm OD, which fits in to the center of the sealed bearing.
Installs: 15267, 15268 bearings
Inner Step Outer Diameter: 14.8mm
Outer Diameter: 25.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations)Expected Date:07 May 2026Expected Date:07 May 2026$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$21.00 (RRP) -
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punchExpected Date:07 May 2026Expected Date:07 May 2026$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$80.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$226.00 (RRP)$239.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:ABTLABTBDKIT
This is add on kit for the popular Abbey Bike Tools Modular bearing press adding even more versatility for the modern mechanic to deal with all the different shapes, sizes, and styles.
The kit includes drift all common bearing sizes with a bearing inner diameter (ID) of 15mm or larger. Including the over axle drifts required to install bearings in DT, Zipp and other modern captured bearing hubs. These drifts feature a 1/2" (12.7mm) ID and can be used with other presses if need be.
Drifts included to precisely fit bearing sizes:
6702
6703
6704
6803
6804
6902
61903
6904
17287
15267/15268
Made in Bend Oregon.$450.00 (RRP)Add To Cart
-

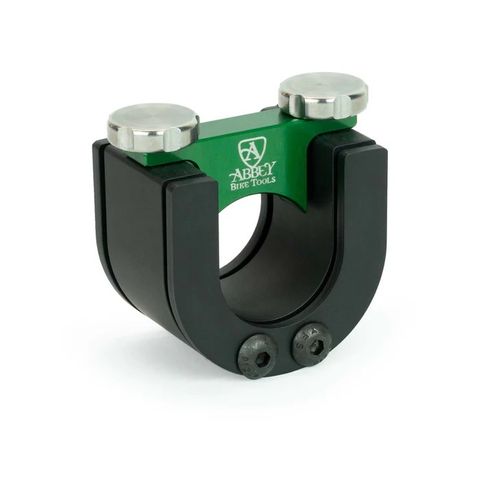

Stock Code:ABTLABTSAWG
Trimming steer tubes hasn't gotten any easier on modern bikes. In the search for a super clean look, bikes are routing cables through headsets and steer tubes and it's made tasks that use to be quick and simple a major time suck. Until now! The unique thing about our Saw Guide is that the clamp is open, so you can slide it around the steer tube instead of having to slide it over the end. It doesn't sound like that big of a deal but it means you can get an accurate and square cut without taking the fork off the bike and more importantly without taking all the cables out of the bike. Use this tool once for that application and it's paid for itself. Of course it will work on normal steer tubes as well and give you a nice square cut every time.
The guide is two sided, one side for standard toothed metal cutting blades and the opposite side is wider for abrasive blades used to cut composites. You can also use the guide in a vise like you're probably use to and it's pretty compact if you want to travel with it.
Made in Bend Oregon.$206.00 (RRP)Add To Cart
-
Stock Code:ABTLABTSPD32MM
This tool make dust wiper installation an easy sure fired task. Drivers are made in diameters specific to stanchion sizes for most modern forks including 32, 34, 35, 36, 38, and 40mm.
The Fork Seal Press is built with modern tight fitting fork seals in mind. Using a common handle with a stainless steel striking surface to give excellent durability when setting seals with a mallet.
The handle provides ample clearance for your hand around the fork crown while allowing a good grip to seat the seal. The Delrin drivers are built to use the upper fork bushing as a guide. Making sure the seal goes in square the first time, every time.
Note, these drivers are designed to be used with our handle, hitting them directly with a hammer can cause failure and will not be covered under warranty.
Made in Bend Oregon.$56.00 (RRP)
