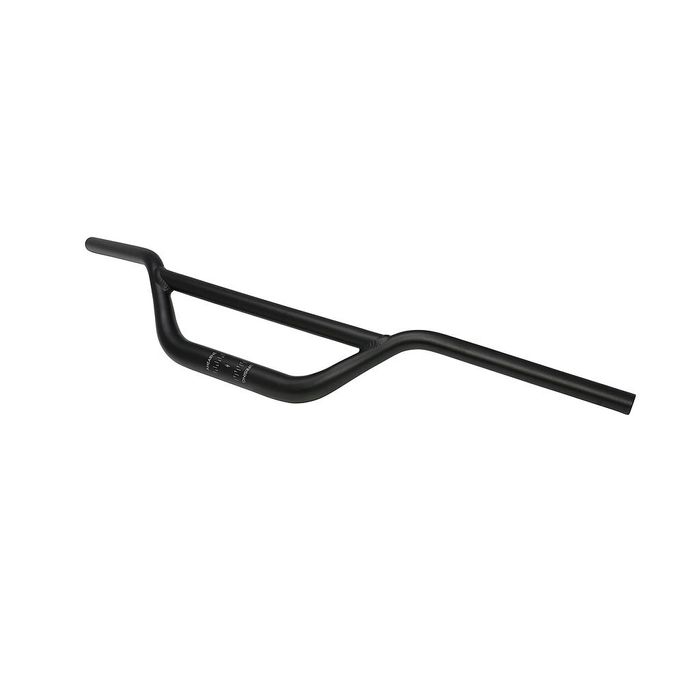

Soma Ahearne Uprising 31.8mm 830mm
Description
Inspired by old BMX bars these are the handlebars of choice for those who want to rise up and help make a better world. The 100mm rise is awesome for relaxing the ride position on all those bikes with overly low stack heights. The 22mm OD crossbar is not there just for strength, but allows installing accessories.
- 6061 T6 Aluminum
- Width: 830mm
- Rise: 100mm
- Center: 31.8mm
- Backsweep: 22°
- Upsweep: 5°
- Space on crossbar: 360mm
- Weight 650g
- Shotpeen and anodized black
Webshops and Bike shops
You may also be interested in...
-
Stock Code:SMHB27869Stock Code:SMHB27872Stock Code:SMHB27801
The Sparrow is a touring/townie bar. The 490mm version is more agile for squeezing through traffic than other townie/MTB bars. The 520mm is still narrow, but with a grip area that fits levers and shifters. The 560mm size is better for climbing and single-speeders. Try all the sizes on a single-speed or fixie. Can be used flipped to be used as a riser bar or down for a less upright position.
- Shotpeened Tange Aluminum
- Widths: 560 mm, 520mm or 490mm
- Silver or Black
- 25.4 mm clamp diameter
- 50mm drop/rise
- 22.2mm grip diameter, 20.0mm inside diameter at ends to allow use of pursuit levers.
- Weight 245g$170.00 (RRP)$170.00 (RRP)$170.00 (RRP) -
Stock Code:TNHB-HB-E115Stock Code:TNHB-HB-E132Stock Code:TNHB-HB-E133Stock Code:TNHB-HB-E134
800mm wide, 20mm of rise, 9° of backsweep and 5° of upsweep. Built using 7050 Aluminum alloy for strength and long life. 65mm wide clamping area to fit our Direct Mount stem, giving you the most torsional stiffness of any bar/stem combination. 31.8 center section is absolutely straight over a width of 90mm. The long straight section in the middle reduces stress concentrations, especially when using wide Direct Mount stems
Bar is butted and tapered in many steps for optimal fatigue life. Ends of the bar are thickened from 1.4 to 1.6mm to resist damage from impacts and contact with the ground.
Bar is produced by advanced CNC bending to avoid the need for hand grinding. Almost all other bars are manually bent and bends are ground to appear smooth. CNC bending ensures very consistent wall thickness and close tolerances, especially in tapered sections. This keeps weight low and fatigue life high.
Weight 295 g
The perfect addition to your Elite X4 Stem or Direct Mount Stem.Expected Date:13 October 2025$199.00 (RRP)$215.00 (RRP)$215.00 (RRP)$215.00 (RRP) -
Stock Code:SAHB-HB0354Stock Code:SAHB-HB0355Stock Code:SAHB-HB0356
Cowchipper provides comfort, control, and efficiency for long days in the saddle, whether road touring, crushing mixed surfaces, or conquering the Great Divide. While the Cowchipper retains some resemblance of a traditional road bar, its radical 24 degree flare in the drops boosts leverage, stability, and comfort dramatically.
- Lightweight and strong 7050-T76 series alloy construction with polished finish
- Drop/Reach: 116/68mm
- 31.8mm clamp diameter with 120mm width for use with Salsa Anything Cradle and aerobars
- 24 deg flare and 12 deg drop angles$190.34 (RRP)POAPOAPOA -
Stock Code:SMHB278021
Riser bar with extra bend, but a low rise. Not as much bend as Soma's original Dream Riser, but enough so grips don't get in the way of large bar bags.
– 6061 T6 Aluminum
– Width: 780mm
– Center: 31.8mm
– Rise: 25mm
– Backsweep: 20 degrees
– Upsweep: 5 degrees
– Weight: 425g$214.00 (RRP)Add To Cart
-
Stock Code:SMHB278035
The Soma Gullwing was designed to be the most natural way to adapt a road bike to flat bars while still retaining your integrated road shift/brake levers.
The bar has a 30mm rise and 25ª backsweep. Harder to see in photos is the 7° drop at the grips which suits a semi-aggressive ride position and puts your wrists in a better angle to operate the levers. The curve for the backsweep also creates the ideal amount of brake lever travel for road levers.
The brake lever hoods can be used as a secondary place to rest your hands and to get more aero. Hood position feels similar to a 38cm road bar, which is fine, since this is not the primary hand position.
Grip section is 22.2mm OD, so you can either run MTB grips or bar tape.
Straight section near the clamp is 110mm wide, which gives some room for accessories or possibly aero bars.
Designed in Japan by Tokyo San Esu.
• Width: 620mm
• Center: 31.8mm OD
• Material: 6061-T6 Aluminum
• Rise: 30mm (with 7° down slope at grips)
• Backsweep: 25°
• Grip OD: 22.2mm
• Lever mounting area OD: 23.8mm
• Weight: 290g
*** Not feasible to use with Campagnolo Ergo levers, L-Twoo, or other models where one of the shifters is on the inboard side of the lever.$233.00 (RRP)Add To Cart
