Soma Handlebar Gullwing 620mm
Description

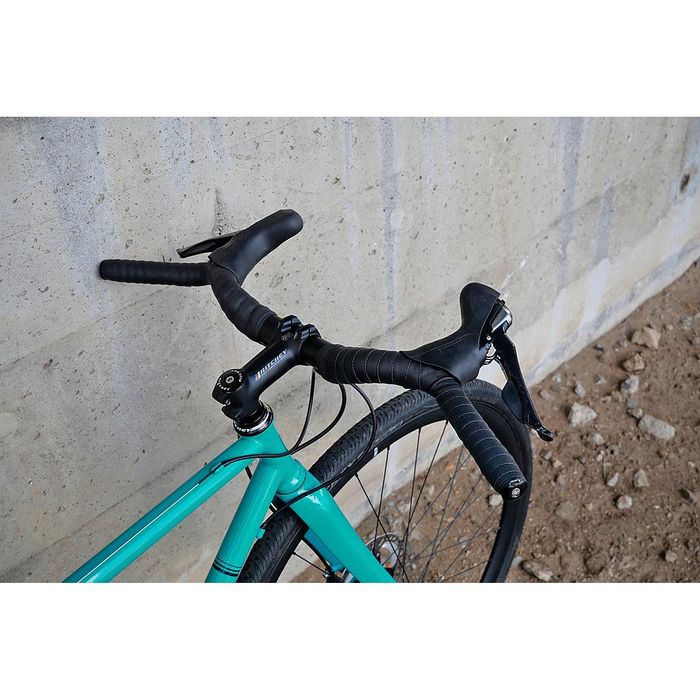

The Soma Gullwing was designed to be the most natural way to adapt a road bike to flat bars while still retaining your integrated road shift/brake levers.
The bar has a 30mm rise and 25ª backsweep. Harder to see in photos is the 7° drop at the grips which suits a semi-aggressive ride position and puts your wrists in a better angle to operate the levers. The curve for the backsweep also creates the ideal amount of brake lever travel for road levers.
The brake lever hoods can be used as a secondary place to rest your hands and to get more aero. Hood position feels similar to a 38cm road bar, which is fine, since this is not the primary hand position.
Grip section is 22.2mm OD, so you can either run MTB grips or bar tape.
Straight section near the clamp is 110mm wide, which gives some room for accessories or possibly aero bars.
Designed in Japan by Tokyo San Esu.
• Width: 620mm
• Center: 31.8mm OD
• Material: 6061-T6 Aluminum
• Rise: 30mm (with 7° down slope at grips)
• Backsweep: 25°
• Grip OD: 22.2mm
• Lever mounting area OD: 23.8mm
• Weight: 290g
*** Not feasible to use with Campagnolo Ergo levers, L-Twoo, or other models where one of the shifters is on the inboard side of the lever.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:SMHB27658
A super wide cousin of the Sparrow designed for offroad use. Inspired by the sweep angle of the Jeff Jones H-Bar. The Clarence makes it easy to throw the bike around in technical situations. Plus the grip position feels really natural. The 31.8mm version is slightly wider than the 25.4mm.
- 6061-T6 aluminum
- 34° back sweep
- 19° upsweep
- 37mm rise
- 670mm width
- 31.8mm center
- 22.2mm ends$175.00 (RRP) -
Stock Code:TNHB-HB-E115Stock Code:TNHB-HB-E132Stock Code:TNHB-HB-E133Stock Code:TNHB-HB-E134
800mm wide, 20mm of rise, 9° of backsweep and 5° of upsweep. Built using 7050 Aluminum alloy for strength and long life. 65mm wide clamping area to fit our Direct Mount stem, giving you the most torsional stiffness of any bar/stem combination. 31.8 center section is absolutely straight over a width of 90mm. The long straight section in the middle reduces stress concentrations, especially when using wide Direct Mount stems
Bar is butted and tapered in many steps for optimal fatigue life. Ends of the bar are thickened from 1.4 to 1.6mm to resist damage from impacts and contact with the ground.
Bar is produced by advanced CNC bending to avoid the need for hand grinding. Almost all other bars are manually bent and bends are ground to appear smooth. CNC bending ensures very consistent wall thickness and close tolerances, especially in tapered sections. This keeps weight low and fatigue life high.
Weight 295 g
The perfect addition to your Elite X4 Stem or Direct Mount Stem.$199.00 (RRP)$215.00 (RRP)$215.00 (RRP)$215.00 (RRP) -
Stock Code:SLHB-HB0101Stock Code:SLHB-HB0102Stock Code:SLHB-HB0103
The Surly Corner Bar is for off-road riders who want to give drop bars a try without swapping out the drivetrain and brake levers on their current mountain setup. Does that make it an economical option for fresh excitement on the trail? Yes, it does.
- Chromoly steel with custom-butted tubing
- 46cm, 50cm, and 54cm widths
- 22.2mm grip diameter
- 25.4mm clamp diameter
- One set of 25.4/31.8 x 60mm Problem Solvers shims includedPOAPOAPOA -
Stock Code:SMHB280142
If you find your current bars were cut too short or designed too short to fit your brake lever and shifter set up, check these out.
Attach these to your bar ends to add 50mm (2") to each side of your bar. Also useful if you want to your cruiser bars to reach back a little farther.
- For city/MTB bars with 22.2mm OD.
- Aluminum constuction
- 50mm of extension per unit
- The resulting fit is not perfectly seamless, but good enough to where it should feel normal after grips are installed.
- DO NOT use on bars that have been partially machined out at the ends (to fit bar end shifters or reverse levers) This includes Soma Oxford, Sparrow and 3-speed II bars
- ID not sized to accept reverse levers or bar end shifters.
- Requires a 6mm hex key (2 inches long) to install$47.00 (RRP) -
Stock Code:SMHB280143
If you find your current bars were cut too short or designed too short to fit your brake lever and shifter set up, check these out.
Attach these to your bar ends to add 50mm (2") to each side of your bar. Also useful if you want to your cruiser bars to reach back a little farther.
- For city/MTB bars with 22.2mm OD.
- Aluminum constuction
- 50mm of extension per unit
- The resulting fit is not perfectly seamless, but good enough to where it should feel normal after grips are installed.
- DO NOT use on bars that have been partially machined out at the ends (to fit bar end shifters or reverse levers) This includes Soma Oxford, Sparrow and 3-speed II bars
- ID not sized to accept reverse levers or bar end shifters.
- Requires a 6mm hex key (2 inches long) to install$47.00 (RRP)
