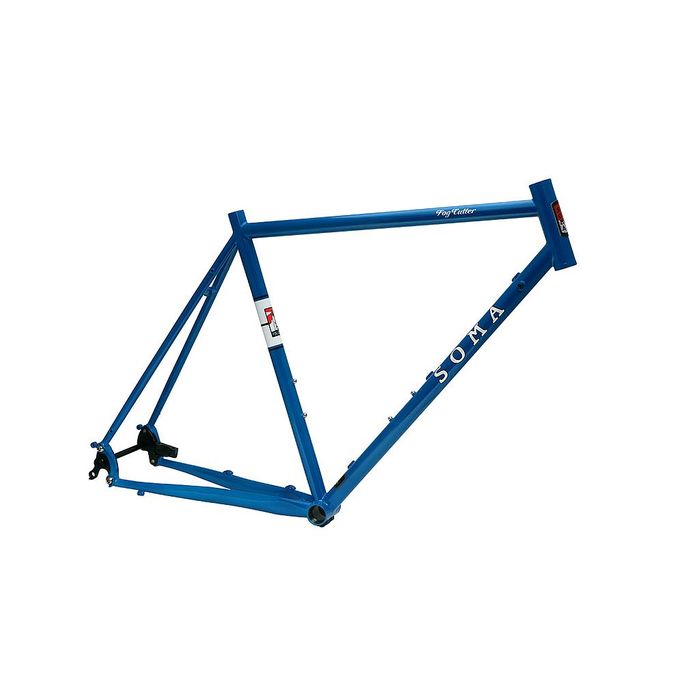

Soma Fog Cutter Frame+ IS Fork Blue 48cm
Description
The Fog Cutter is an endurance road/road sport design. We designed it to fit fatter tires, but its geometry makes it handle like a road bike rather than CX or gravel bike. It can float you over chewed up asphalt better than most bikes in this category. This is the frame you want for grand fondos, long days in the saddle and the most demanding commutes.
Tange Prestige double butted CrMo steel tubing; heat treated throughout
• Fork INCLUDED lugged CrMo steel fork (CrMo steerer, IS disc mount, QR hub)
• Road sport geometry
• Rear rack & fender mounts
• Tange Modular dropouts. Stock setup is for 142mm thru-axle hubs and flat mount disc brakes. Alternative styles available thru Tange/Long Shen.
• Tyre clearance for 700c x38mm with fenders (some front derailleurs will limit tire clearance) and 650b x 42mm
• Fits 1-1/8" headset (EC34/28.6|EC34/30 headsets)
- 27.2mm post size
Webshops and Bike shops
You may also be interested in...
-
Stock Code:SMFR900134Stock Code:SMFR900137Stock Code:SMFR900138Stock Code:SMFR900139
The Smoothie HP is the “high protein” version of our Smoothie road frame that was part of our line for almost 20 years.
Extra large diameter, thin-wall Tange Prestige chromoly coupled with modern touches like thru-axles and compact geometry give this frame increased power transfer and road feel while still delivering a composed and plush ride at all speeds. The re-designed geometry combines a comfortable higher stack with a shorter wheelbase that rewards skillful riders.
Frame Features:
- Tange Prestige heat-treated double butted CrMo steel
- Extra oversized down tube and chainstays for greater pedaling stiffness
- Ovalized top tube for increased lateral stiffness and vertical compliance
- Size specific tubing (Larger diameter down tubes on the larger sizes)
- Comfortable high stack matched with a tighter wheelbase than the typical big brand endurance road frame
- Replaceable modular dropouts (12 x 142mm bolt-on thru-axle, fits flat mount disc brake)
- BSA Threaded bottom bracket shell
- Rear rack/fender mounts
- Max tire size: 700x32c with fenders
- Two water bottle boss sets
- 6 sizes: 48, 52, 54, 56, 58, 60
Fork Features:
- Carbon Fiber
- 43mm rake (48mm on size 48 and 52cm)
- Fits 700x32 tires with fenders
- 12 x 100mm QR thru-axle, flat mount brake compatible
- Tapered alloy steerer
- Internal cable routing$2,165.00 (RRP)$2,165.00 (RRP)$2,165.00 (RRP)$2,165.00 (RRP) -
Stock Code:SMFR900165Stock Code:SMFR900166Stock Code:SMFR900167Stock Code:SMFR900168Stock Code:SMFR900169Stock Code:SMFR900170Stock Code:SMFR900171Stock Code:SMFR900172Stock Code:SMFR900173

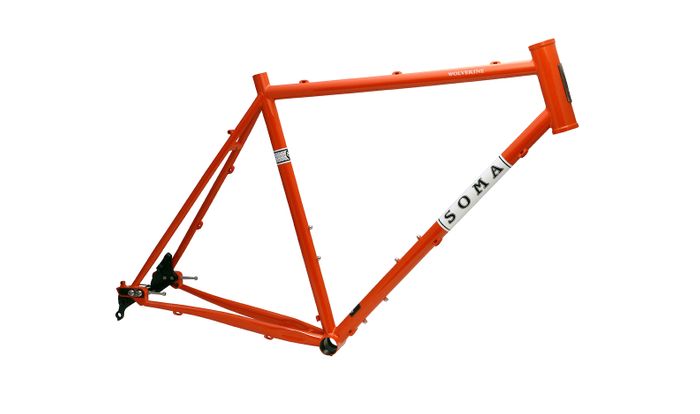

The original inspiration for the Wolverine was “monster cross”, but it is seriously so much more. Its geometry is stable enough for off road touring, but sporty enough for all-around adventure.
The primary differences between the version 3.0 Wolverine and the v. 4 Type-A and B is an extra set of water bottle bosses, and additional stack height on most sizes.
The Type-A ALSO adopts more modern standards such as 142mm rear thru-axle and a 44mm headtube that will fit 1-1/8 straight steerer or tapered steerer with the proper headset type. NO frame break for Belt-Drive. (See chart for other differences between A and B)
- Tange Prestige heat-treated CrMo front triangle; butted CrMo rear end
- Clearance for 700x45c tires w/ fenders
- Rear hub spacing/type: 142 x12mm Thru-Axle
- IRD Broski sliding dropouts allow for geared or single-speed builds
Optional Matching Fork: Unicrown straight blade 15mm thru-axle fork with cage bosses (1-1/8”)
No lugged crown fork offered for the Type-B
- Braze-ons for rear rack and fenders (disc brake-compatible racks only)
- Three sets of water bottle bosses
- 44mm headtube (Use ZS44/28.6-ZS44/30 headset for 1-1/8” steerers) (Use ZS44/28.6 -EC44/40 headsets for 1-1/8”-1-1/2” steerers)
- Sizes: 46, 50, 52, 54, 56, 58. 60, 62 and 66cm (We recommend 650b tires on the 46cm)$1,732.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP) -
Stock Code:SMFR900177Stock Code:SMFR90822Stock Code:SMFR900178Stock Code:SMFR90823Stock Code:SMFR900179Stock Code:SMFR900180Stock Code:SMFR90825Stock Code:SMFR900181Stock Code:SMFR900182Stock Code:SMFR900183Stock Code:SMFR900184
The original inspiration for the Wolverine was “monster cross”, but it is seriously so much more. Its geometry is stable enough for off road touring, but sporty enough for all-around adventure. With its sliding dropouts, you can turn it into a single-speed CX bike. With a split seatstay, it is compatible with the Gates Carbon Belt Drive.
The primary differences between the 3.0 and v. 4 Type-B is an extra set of water bottle bosses, and additional stack height on most sizes.
- Tange Prestige heat-treated CrMo front triangle; butted CrMo rear end
- Clearance for 700x45c tires w/ fenders
- Rear hub spacing:135mm (10mm QR, can be upgraded to 142mm 12mm TA with different inserts )
- Gates Carbon belt drive compatible
- IRD Broski sliding dropouts allow for geared or single-speed builds
Optional Matching Forks: A) lugged flat crown standard QR axle, Tange Infinity CrMo steel fork; double eyelets pannier rack and mini rack mounts. B) Unicrown straight blade 15mm thru-axle fork
- Braze-ons for rear rack and fenders (disc brake-compatible racks only)
- Three sets of water bottle bosses
- 1-1/8” size headtube$1,732.00 (RRP)$1,750.00 (RRP)$1,732.00 (RRP)$1,750.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP)$1,750.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP) -
Stock Code:SMFR900177Stock Code:SMFR90822Stock Code:SMFR900178Stock Code:SMFR90823Stock Code:SMFR900179Stock Code:SMFR900180Stock Code:SMFR90825Stock Code:SMFR900181Stock Code:SMFR900182Stock Code:SMFR900183Stock Code:SMFR900184
The original inspiration for the Wolverine was “monster cross”, but it is seriously so much more. Its geometry is stable enough for off road touring, but sporty enough for all-around adventure. With its sliding dropouts, you can turn it into a single-speed CX bike. With a split seatstay, it is compatible with the Gates Carbon Belt Drive.
The primary differences between the 3.0 and v. 4 Type-B is an extra set of water bottle bosses, and additional stack height on most sizes.
- Tange Prestige heat-treated CrMo front triangle; butted CrMo rear end
- Clearance for 700x45c tires w/ fenders
- Rear hub spacing:135mm (10mm QR, can be upgraded to 142mm 12mm TA with different inserts )
- Gates Carbon belt drive compatible
- IRD Broski sliding dropouts allow for geared or single-speed builds
Optional Matching Forks: A) lugged flat crown standard QR axle, Tange Infinity CrMo steel fork; double eyelets pannier rack and mini rack mounts. B) Unicrown straight blade 15mm thru-axle fork
- Braze-ons for rear rack and fenders (disc brake-compatible racks only)
- Three sets of water bottle bosses
- 1-1/8” size headtube$1,732.00 (RRP)$1,750.00 (RRP)$1,732.00 (RRP)$1,750.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP)$1,750.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP)$1,732.00 (RRP) -
Stock Code:SLFR-FM9979Stock Code:SLFR-FM9980Stock Code:SLFR-FM9978Stock Code:SLFR-FM9981Stock Code:SLFR-FM9977
Designed to introduce unfamiliar riders to Surly’s pavement and gravel line, Preamble highlights Surly’s most essential features: Durable custom steel tubing, a renowned ride feel, and just the right mounts for running racks, fenders, and bottle cages. It’s disc-brake specific and shares a single-position vertical dropout with Surly Bridge Club.
Rear Hub Spacing: "Gnot-Boost"138mm 10 x 135mm or 10 x 141mm
Front Hub Spacing: 10 x 100mm
Rear Brake: Disc - 51mm I.S. (180mm max rotor)
Front Brake: Disc - 51mm I.S. (203mm max rotor)
Headtube: Ø34mm
Seat Collar: Ø30.0mm
Max Chainring: 1x (47CL): 42T 2x (47CL): 46/36T
Bottom Bracket: 68mm BSA, threaded
Tyre Clearance Frame:
XS-SM frames: 650b x 41mm (with or without fenders)
MD-XL frames: 700c x 41mm (with or without fenders)
Tyre Clearance Fork:
XS-SM frames: 650b x 47mm (with or without fenders)
MD-XL frames: 700c x 44mm (with or without fenders)$1,450.00 (RRP)POAPOAPOAPOAPOA
