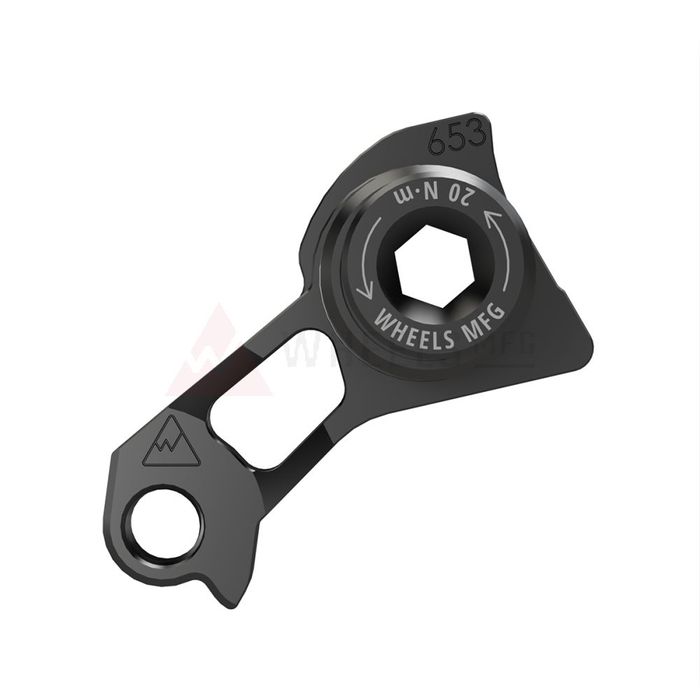

DH653 Sram UDH for Shimano D/M
Description
All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.
- CNC machined 6061 aluminum
- Thru Axle Thread M12x1.0
- Use without the B-Link when attaching
- Adds direct mount compatibility with Shimano mountain deraileurs to any SRAM UDH compatible frame. Optimized for Shimano Saint (RD-M820), Deore (RD-M610, RD-M5120, RD-M4120), Deore XT (RD-M8000, RD-M8050), SLX (RD-M7000-10, RD-M670), and Altus (RD-M2000). Retains ability of original SRAM UDH to rotate under impact to help protect the derailleur in the event of an impact.
