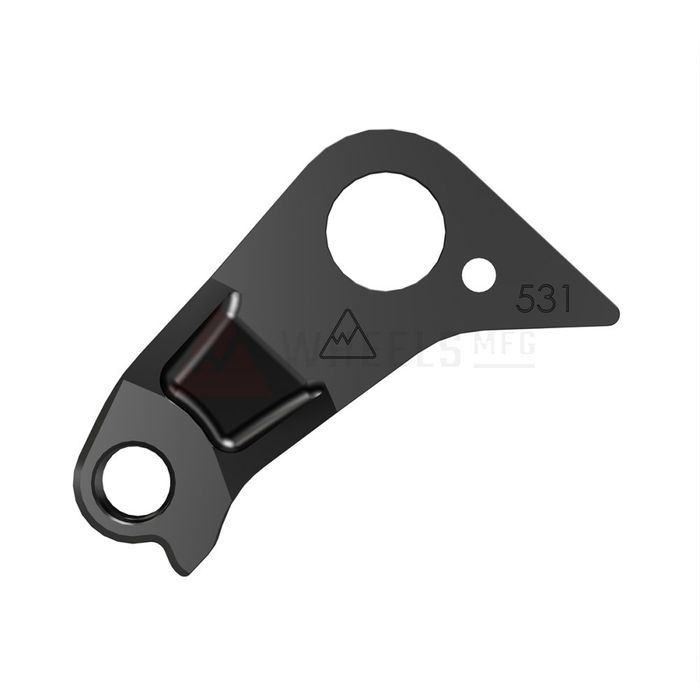

DH531 CANYON
Description
All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.
- CNC machined 6061 aluminum
- Attaches to frame with M4x6mm Flat Head Screw
- Thread Pitch -M12x1.5
- Canyon: EP0722-01
Canyon:
Lux CF SL - 2019-2020
Lux CF SLX - 2019-2020
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMDH-012
Attaches to frame with (2) M3x10 socket head screws
Fasteners included
Replaces Specialized part # 9894-4206
Specialized
Enduro FSR (4.5"/5.2") - 2002-2005
Enduro SX - 2003-2004
Epic - 2003-2005
FSRxc - 2005
Hardrock Aggro - 2004-2005
Hardrock XC - 2005
Hotrock A1 FSR - 2005
Hotrock HT - 2004-2005
Rockhopper HT - 2004-2005
S-Works Enduro - 2003-2005
S-Works Epic - 2003-2005
S-Works M5 HT - 2003-2005
Stumpjumper 100 - 2004-2005
Stumpjumper 120 - 2005
Stumpjumper M4 HT - 2003-2005$52.00 (RRP)Add To Cart
-
Stock Code:WMDH-256
Thru Axle Thread Pitch: M12x1.75
Attaches to frame with (1) M8 Chainring bolt
Fastener Included
Replaces:
Jamis #65-0001
Note: DROPOUT-256 is for M12x1.75 thru axles. If using a M12x1.5 thru axle, use DROPOUT-343.
Airborne
Goblin Evo - ---
iZip
Dash w/M12x1.75 TA - 2016-2018
Peak w/M12x1.75 TA - 2016
Protour w/M12x1.75 TA - 2016-2017
Urban+ w/M12x1.75 TA - 2017-2018
Jamis
Dakar XCR Sport - 2013
Dakar XCT 650 Comp with 12x142 rear axle - 2014
Dakota D29 Pro - 2017
Dakota D29 Race - 2017
Dakota D29 Team - 2017
Defcon 1/2/3 - 2017
Halo XCT Comp - 2017
Halo XCT Pro - 2017
Nemesis Pro - 2017
Nemesis Race - 2017
Nemesis Team - 2017
Raleigh
Route w/M12x1.5 TA - 2016
Sprint w/M12x1.5 TA - 2016-2017
Rocky Mountain
Blizzard -50, -30 - 2015-2016
Whyte
529 w/12x1.75 TA - 2019
629 w/12x1.75 TA - 2019
901 w/12x1.75 TA - 2019
901 w/12x1.75 TA - 2017-2018
905 w/12x1.75 TA - 2019
905 w/12x1.75 TA - 2017-2018
909 w/12x1.75 TA - 2019
909 w/12x1.75 TA - 2017-2018
FRISTON w/12x1.75 TA - 2017-2019
GISBURN w/12x1.75 TA - 2017-2019
GLENCOE w/12x1.75 TA - 2018
GLENCOE w/12x1.75 TA - 2019
WESSEX Di2 w/12x1.75 TA - 2018-2019
WESSEX ONE w/12x1.75 TA - 2017-2019
WESSEX SE w/12x1.75 TA - 2017-2019
WESSEX w/12x1.75 TA - 2017-2019$73.00 (RRP)Add To Cart
-
Stock Code:WTDR10S-GLINK
The GoatLink is simply the fastest route to improved wear and long-term shifting performance on wide-range 1x10 drivetrains using the Shimano Shadow+ Rear derailleurs. The GoatLink, made by Lindarets and Wolf Tooth, re-positions 10-speed Shimano Shadow+ Rear derailleurs to the optimal location when using the GC 40T and GC 42T cassette expanders.
Compatibility: Compatible Shimano Shadow+ 10-speed rear derailleurs (clutch type ONLY) have a Direct Mount link (including spacer, if so equipped) or B-pivot knuckle with a thickness of 7.9-8.1mm. Shimano changed to this sometime in 2013. Very early Shadow+ rear derailleurs have a thinner link and are not compatible.
-The GoatLink is optimized for use with Wolf Tooth’s 40- and 42-tooth GCs and all sizes of Drop-Stop chainrings - but will work with any 11-40t or 11-42t 10-speed cassette.
- Direct Mount-native frames and SRAM rear derailleurs are not supported.
- You will NEVER need a longer b-screw with the GoatLink
- Improvements with the GoatLink*
Chain wrap at 11t (effects cassette life):
40t: Improved by 69%
42t: Improved by 53%
Free chain length at 11t (effects shifting precision):
40t: Improved by 25%
42t: Improved by 19%$60.00 (RRP)Add To Cart
-
Stock Code:WMDH-551
All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.
- CNC machined 6061 aluminum
- Attaches to frame with M5x20mm Socket Head Screw
- Spot: FS90009
Spot:
Mayhem G1 - 2018-2021
Rollik - 2016-2020$73.00 (RRP)Add To Cart
-
Stock Code:WMDH-621
All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.
- CNC machined 6061 aluminum
- Black anodized finish
- Thru Axle
- M4x16mm Flat Head Screw
- Cannondale: K33071
Fantic
XEF 1.9 Race - 2022
XF1 -
XMF - 2022
XTF - 2022
XXF - 2022$62.00 (RRP)Add To Cart
