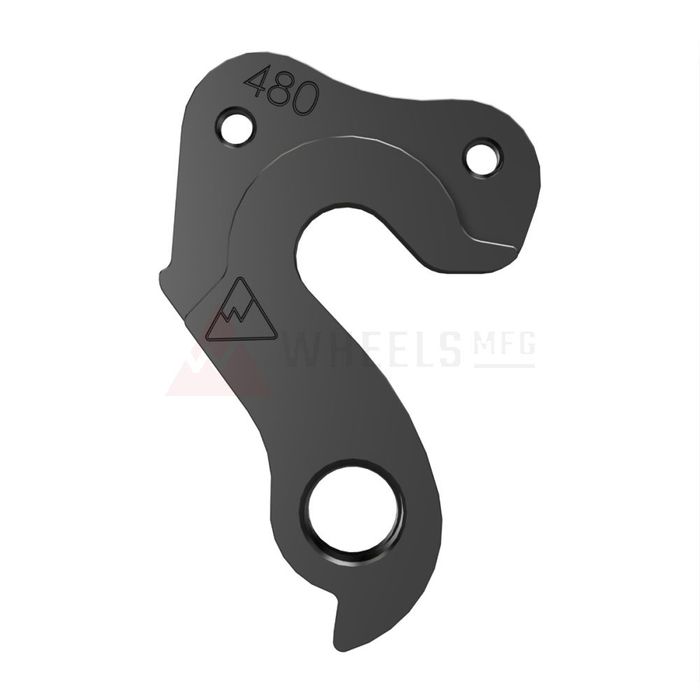

DH480 HARO KHS
Description
Attaches to frame with (2) M4x8mm Flat Head w/ 6mm diameter head.
HARO
Aeras - 2020
Aire - 2020
Rivon - 2020
KHS
Grit 220 - 2017
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMDH-157
Attaches to frame with (2) M4x8 Flat Head Screws
Fasteners not included
Replaces Giant part # RE4UD
Giant
Avail Advanced - 2009-2011
Avail Alliance - 2010 only
Avail Composite - 2012 only
Dash - 2010+
Defy Advanced - 2009-2011
Defy Alliance - 2010 only
Defy Composite - 2012 only
Escape RX - 2014-2015
OCR Composite - 2005-2008
Rapid - 2010+
TCR Advance SL - 2009-2011
TCR Advanced - 2005-2011
TCR Aluminum - 2013-2015
TCR Composite - 2007-2008
TCR Composite - 2011-2015
TCX Advanced SL - 2011-12Stock Level:In StockStock Level:In Stock$52.50 (RRP)Add To Cart
-
Stock Code:WTDR11S44-GLINK
The GoatLink 11 hanger extension offsets the position of your 11-speed Shimano mountain bike rear derailleur allowing you to be able to run a wider range cassette while improving performance.
- Same ergonomics and reliability of Shimano shifters and derailleurs
- Gear range, simplicity and quietness of SRAM 1x11 drivetrain
- High-performance and lightweight
This project began with the desire to run 11-speed Shimano derailleurs and shifters with SRAM 10-42t XD cassettes. Granted the combination can work without modification - but performance wasn't quite what we'd expect from Shimano and SRAM's finest.
When used with a 10-42t cassette, the GoatLink 11 re-positions SLX M7000, XT M8000 and XTR M9000 rear derailleurs such that free chain length between the cassette and the top derailleur pulley is within 1% of what Shimano intended while cassette tooth engagement in the smallest cog is improved by 27%.
Knowing that certain situations call for a range beyond that provided 10-42t or 11-42t cassettes, we tweaked the GoatLink 11 to also significantly improve Shimano 11spd rear derailleur performance with extended-range like the Wolf Tooth GCX44 modified 10-44t XX1 or X01 cassette.
Compatibility
Cassette • Compatibility
11-40 • Not Required
11-42 • Not Required
11-45 • GS/SGS Derailleur
11-46 • GS/SGS Derailleur
10-42 • GS/SGS Derailleur
10-44 • GS/SGS Derailleur (Wolf Tooth GCX44)
10-45 • Not Optimized
9-44 • Not Optimized
Other notes:
- The GoatLink 11 is compatible with SLX M7000, XT M8000 and XTR M9000 series 11-speed Shimano rear derailleurs.
- The GoatLink 11 mounts only to standard derailleur hangers.
- Double chainrings (2x) is supported and requires a long cage (SGS) rear derailleur with no more than a 12t difference in front chainrings (with an 11-46t cassette).
- Triple chainrings are not supported.
- Direct Mount native frames and SRAM derailleurs are not supported.Stock Level:1Stock Level:1$59.20 (RRP)Add To Cart
-
Stock Code:WMDH-497
DEVINCI
Wilson - 2011-2018
All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.
CNC machined 6061 aluminum
Black anodized finish
Attaches to frame with (2) M8 Chainring BoltStock Level:Out Of StockStock Level:Out of StockExpected Date:06 June 2024$78.75 (RRP) -
Stock Code:WMDH-544
All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.
- CNC machined 6061 aluminum
- M3x8mm Flat Head Screws
- For Basso rim brake models only.
Basso
Astra - 2012+
Diamante - 2014+
Fastcross - 2013+
Konos - 2014+
Laguna - 2013+
Venta Rim - 2021+
Viper
Galibier - 2014-2015Stock Level:2Stock Level:2$63.00 (RRP)Add To Cart
-
Stock Code:WMDH-606
All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.
- CNC machined 6061 aluminum
- Attaches to frame with (1) M4x10mm Flat Head Screw
- Rocky Mountain: Hanger 6, 1098057ANJ
Bulls
Black Adder - 2008-2014
Go Outdoors
Calibre Beastnut - 2017
Marin
Eldridge Grade - 2022
Eldridge Grade 1 - 2022
Polygon
20-C - 2012-2013
20-C S - 2012-2013
20-C Team - 2012-2013
Cleo - 2013-2014
Cleo 2 - 2021
Cozmic - 2011-2016
Premier 4 - 2018-2021
Premier 5 - 2018-2021
Siskiu D5 - 2019-2022
Siskiu D6 - 2016
Siskiu D7 - 2016
Tensor TR1 - 2017
Xtrada - 2014, 2018
Rock Machine
Catherine E60 - 2018-2020
Crossride 100 - 2019-2020
Crossride 250 - 2019-2020
Whyte
29-C - 2012-2015
29-C Team - 2013-2018Stock Level:In StockStock Level:In Stock$63.00 (RRP)Add To Cart
