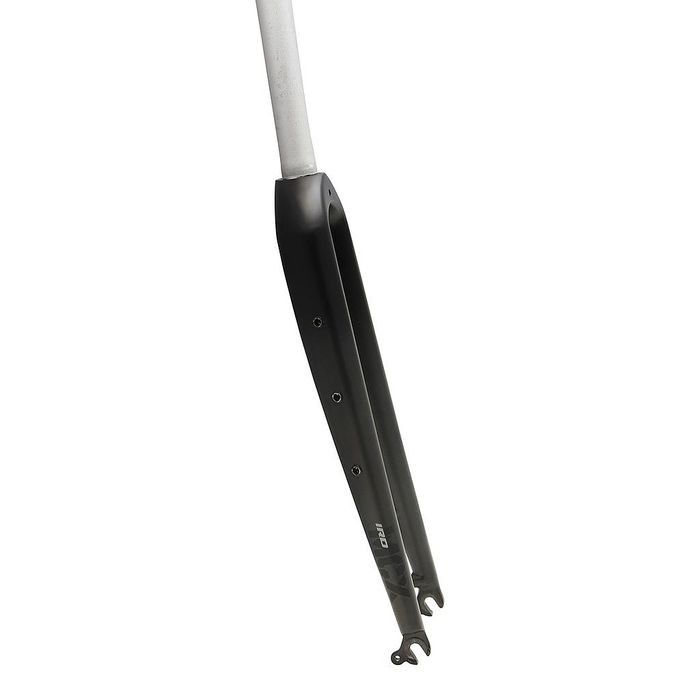

IRD Carbon Fork MCX QR 1-1/8
Description
The MCX QR is a monster cross/gravel carbon fork with clearance to fit 700 x 50mm tires and 27.5" x 2.1" tires
(The MCX also comes in thru-axle configuration. There is an MCX Max model that is burlier with tapered steerer, thru-axle, and even more tire clearance)
– Axle to crown: 406mm
– Rake: 50mm
– QR hub dropout
– Brake mount: Flat mount disc
– Triple accessory bosses
– Single set of fender eyelets
– Steerer: Aluminum, 1-1/8" x 350mm
– Weight: 760g
– Matte Black finish
Webshops and Bike shops
You may also be interested in...
-
Stock Code:SMFK23129
Soma Track Fork 1" Threaded Lugged Straight Blade
- Tange Infinity Tubing
- Sloping Lugged Crown
- 230mm steerer/50mm threads
- 41mm rake
- Axle to crown is 365mm.
- Accepts standard reach brakes. (Reminder: Order 1" for Rushes; 1-1/8" for Pakes)$327.44 (RRP) -
Stock Code:SLFK-FK3002
Surly Steamroller Fork 700c 1-1/8" Threadless Black
· CroMoly tubing, flat crown, brazed construction
· Accepts tires up to 700c x 38mm, drilled for standard-reach brake
· No eyelets
· 9mm Brake Bolt to Crown Length
- Axle to Crown Length (mm): 375 mm
- Fork Rake (mm): 38 mm
- Steerer Tube Length (mm): 300 mmPOA -
Stock Code:BTFK-4055822521390
BPC (= BikePackingCarbon) fork replaces maintenance-needy and heavier suspension forks on mountainbikes to lower weight and reduce the amount of parts that could fail. With its triple cage mounts that makes it a perfect fork for MTB-bikepacking rigs or wide-tired ultra-distance race builds.
MATERIAL: Full UD carbon fiber
STEERER: Tapered, 1-1/8" - 1-1/2", 300 mm Length
OFFSET: 51 mm
AXLE TO CROWN: 500 mm
BRAKE: Post Mount, max. 203 mm rotor size
INTERNAL ROUTING: Dynamo cable
MOUNTS: Triple Cage max. load per cage mount: 4.5Kg
INCLUDED: Through-Axle, Expander, Cable port plugs
WEIGHT: 650 g (incl. 6 mounting Bolts, uncut steerer)
TYRE CLEARANCE: 27.5 x 3.0 / 29 x 3.0
ASTM RIDING CONDITION: 2
THROUGH-AXLE TYPE: 15 X 110 mm
TA TOTAL LENGTH (CLOSED): 158 mm
TA THREADING DIAMETER X PITCH: M15 X 1.5
MIN. THREAD LENGTH: 10 mm$690.00 (RRP) -
Stock Code:SMFK230060
Matching fork for the Soma Jawbone A-Type frame.
- Tange CrMo steel
- Steve Potts Type II-R construction
- Axle to Crown: 420mm
- Rake: 50mm
- Investment cast thru-axle dropouts (12mm x 100mm)
- One set of cargo cage bosses per leg, lowest boss can be used for a pannier rack
- IS disc mount
- Sage Green w/ black
If you are getting this fork for the Jawbone, you need a ZS44 headset.
* Since this is for matching to a frame, we reserve the right to restrict sales of this item to customers who are buying a frame.Expected Date:06 June 2024POA -
Stock Code:SLFK-FK0952-SHORT
SHORT STEERER 225mm
Specifications
Axle to Crown Length: 380 mm
Brake Mount (Fork): IS Disc Brake 160
Color: Black
Crown Race: 30
Defined Color: Black
Front Axle: 10mm x 100mm
Material: Steel
Maximum Tyre Clearance (Fork): 650b x 48mm
Offset: 44 mm
Rotor Size (Fork): 160
S.H.I.S. Stem Clamp Diameter: 28.6
Steerer Tube Length (mm): 360 mm
Steerer Type: Straight
Weight: 1134 g
Wheel Size: 650bPOA
