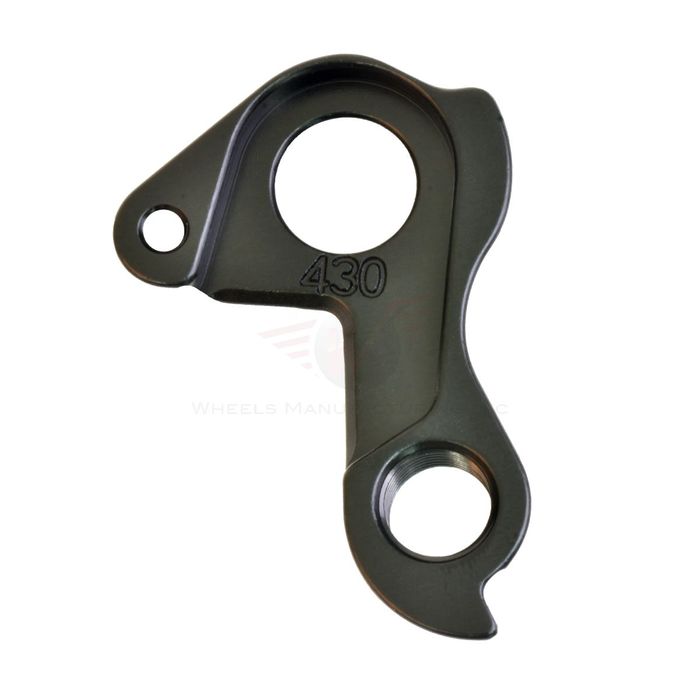

DH430 CO-OP
Description
CO-OP
- DRT 1.2 - 2020
Attaches to frame with (1) 12mm Thru Axel
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMDH-051
Attaches to frame with (1) M8 Chainring Bolt
Attaches to frame with (1) M4x8 Flat Head Screw
Fasteners included
Replaces:
KHS Part # 170
Kona Hanger Type G
Rocky Mountain Part #109161AST
Azonic
Ds-1 - 2003
Evolution II - 2003
Diamondback
Race - 2002
XLS - 2002
XLS Pro/Race - 2001
Focus
Super Bud - 2011
Haro
Extreme - 2001
XLS - 2001
IronHorse
Rogue Race - 2003
KHS
AM1000 - 2005-2006
AM2000 - 2005-2006
DJ300 - 2005
FR1500 - 2003-2004
FR2000 - 2003-2004
FXT Comp - 2001-2002
FXT Rage - 2002
Sport - 2004
Witch Dr. - 2002-2003
XC 904R - 2002-2004
XC104 - 2005-2006
XC204 - 2004-2006
XC304 - 2003-2004
XC504 - 2003-2004
XC604 - 2005-2006
XC704R - 2003-2004
Kona
Chute - 1999-2000
Roast - 1999-2000
Merida
Big Air - 2007
Mongoose
Amasa - 2007
Amasa - 2005-2006
Anaan - 2008
Cannan - 2007
Fireball - 2008
Khyber - 2008
Khyber - 2009
Massif - 2002
Massif - 2003
Otero - 2007
Otero - 2008
Rockadile AL/ALD/ALX - 2004
Sommet - 2002
Sommet - 2003
Teocali - 2007
Teocali - 2008
Teocali - 2009
Triomphe - 2002
Valiant - 2003
Wing Pro - 2003
Wing Pro - 2004
Wingsuper - 2005-2006
Motobecane
Fantom DS -
Rocky Mountain
Edge - 2009-2010
Edge 20 - 2009-2010, 2013
Edge 24 - 2009-2010, 2013
Flare - 2009-2010
Fusion - 2009-2010
Reaper 24 - 2010
Reaper 3/ 2/ 1 - 2010
Soul - 2010
Soul TrailHead - 2009
Strike - 2009-2010
Trailhead - 2010
Vapor - 2009-2010
Schwinn
405/405 Comp - 2009
Circuit - 1998
Super Sport - 1997-1998
Transition
Covert v1 - 2007$46.00 (RRP)Add To Cart
-
Stock Code:SADH-FS0719
Alternator Flat Mount is an adjustable dropout system designed to offer flawless functionality with flat-mount brakes installed. The dropout plates move back and forth on the frame, controlled with a captive barrel nut and screw for a minimal appearance.
- Compatible with frames designed for the Alternator Flat Mount standard
- Allows the rear axle to be adjusted through a 15 mm range
- Thru-axle diameter = 12 mm; thread pitch = 1.5
Note: This part number only includes a single Alternator Flat Mount plate
- Uses Salsa 465 replaceable derailleur hanger (FS2322), sold separately. Also requires Salsa Axle Stud kit (FS1181)POA -
Stock Code:WMDH-555
All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.
- CNC machined 6061 aluminum
- Attaches to frame with 2 M4x8mm Flat Head Screw
Aventon:
Aventure - 2021+$62.00 (RRP)Add To Cart
-
Stock Code:WMDH-536
All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.
- CNC machined 6061 aluminum
- Attaches to frame with 2 M4x16mm w/ 6.5mm Diameter Head
- Thru Axle Thread M12x1.5
Decathlon
Ultra AF GF - 2018
Orange
RX9 - 2019-2021
Speedwork - 2020-2021
X9 - 2019-2021
Ridley
X-Trial Alloy Disc - 2018-2019
Rondo
Mutt AL - 2020-2022
RAG+ - 2021
Ruut AL - 2020-2022$88.00 (RRP)Add To Cart
-
Stock Code:WMDH-616
All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.
- CNC machined 6061 aluminum
-Black anodized finish
- Thru Axle
- 2 x M4x14mm Flat Head Screw and M4x16mm Flat Head Screw
- Merida: DH-054, MUK 36
Merida
Mission CX - 2018-2019
Reacto Disc - 2018-2019
Scultura Disc - 2017-2019
Silex - 2018-2019$62.00 (RRP)Add To Cart
