CHRIS KING INSET4 49MM 1.5-1-1/8"
Chris King Inset i4 Silver 1.5"/49mm Frame suit 1-1/8" fork steerer GripLock
This Chris King® threadless headset features a bearing cap design called GripLock™. GripLock™ is a multi-piece bearing cap that utilizes a split ring that improves steerer tube interface.
InSet™ Model 4 with GripLock™ bearing cap is intended for 1 1-8” steerer dual crown forks, fits bikes from a number of manufacturers and is for long travel applications. As long as your bike doesn’t require an integrated headset this Inset™ headset will perform beautifully on your bike.
This Chris King® Inset™ headset is a low-stack threadless headset. Like other Chris King® headsets, it features user-serviceable stainless steel bearings. Chris King’s bearings are legendary because their design gives you years of trouble free performance with only routine maintenance.
It is absolutely essential that proper reaming and facing of your bike’s head tube be performed by a qualified mechanic during installation of this Inset™ headset. Also, please be aware that modifying a frame to make the Inset™ fit is not a proper method of installation. The proper installation of this headset is so important that you are encouraged to choose another headset if you are not able to have this Inset™ headset properly installed. We highly recommend that you carefully check your bike's specifications before ordering this headset and contact your bike manufacturer if necessary. Please note that we are unable to accept for return, exchange, or credit any headset that has been installed or has been attempted to be installed. This insures that all of our customers receive only pristine, brand new components. Thank you for your understanding. Once properly installed, this Chris King® Inset™ headset will give you years of world class performance.
A wealth of other information is available on the Chris King® website.
American made in USA (U.S.A.)
Specifications:
Warranty: 10 years
Steer tube OD: 1-1/8 inch
Upper head tube ID (tolerances): 49.61mm (+0, -.04)
Lower head tube ID (tolerances): 49.61mm (+0, -.04)
Upper cup minimum ream depth: 16mm
Lower cup minimum ream depth: 16mm
Fork crown seat OD: n/a
Maximum press fit: 0.075mm
Upper stack height (upper cup + bearing cap): 8.0mm
Lower stack height (lower cup + baseplate): 4.0mm
Stem cap screw torque: 15 in. lbs
Weight:120 grams
Chris King Inset i4 Black 1.5"/49mm Frame suit 1-1/8" fork steerer GripLock
This Chris King® threadless headset features a bearing cap design called GripLock™. GripLock™ is a multi-piece bearing cap that utilizes a split ring that improves steerer tube interface.
InSet™ Model 4 with GripLock™ bearing cap is intended for 1 1-8” steerer dual crown forks, fits bikes from a number of manufacturers and is for long travel applications. As long as your bike doesn’t require an integrated headset this Inset™ headset will perform beautifully on your bike.
This Chris King® Inset™ headset is a low-stack threadless headset. Like other Chris King® headsets, it features user-serviceable stainless steel bearings. Chris King’s bearings are legendary because their design gives you years of trouble free performance with only routine maintenance.
It is absolutely essential that proper reaming and facing of your bike’s head tube be performed by a qualified mechanic during installation of this Inset™ headset. Also, please be aware that modifying a frame to make the Inset™ fit is not a proper method of installation. The proper installation of this headset is so important that you are encouraged to choose another headset if you are not able to have this Inset™ headset properly installed. We highly recommend that you carefully check your bike's specifications before ordering this headset and contact your bike manufacturer if necessary. Please note that we are unable to accept for return, exchange, or credit any headset that has been installed or has been attempted to be installed. This insures that all of our customers receive only pristine, brand new components. Thank you for your understanding. Once properly installed, this Chris King® Inset™ headset will give you years of world class performance.
A wealth of other information is available on the Chris King® website.
American made in USA (U.S.A.)
Specifications:
Warranty: 10 years
Steer tube OD: 1-1/8 inch
Upper head tube ID (tolerances): 49.61mm (+0, -.04)
Lower head tube ID (tolerances): 49.61mm (+0, -.04)
Upper cup minimum ream depth: 16mm
Lower cup minimum ream depth: 16mm
Fork crown seat OD: n/a
Maximum press fit: 0.075mm
Upper stack height (upper cup + bearing cap): 8.0mm
Lower stack height (lower cup + baseplate): 4.0mm
Webshops and Bike shops
Related Products
-
Description
Chris King 1-1/8" Base Plate Stainless Steel
Expected Date:06 June 2024 -
Description
Chris King 1-1/8 Inch Seal & Snapring Kit
-For NoThreadSet, 2Nut or GripNut HeadsetsExpected Date:06 June 2024 -
Description
If you already have a 1-1/8 inch NoThreadSet, this bearing cap converts it to GripLock.
GripLock is a multi-piece bearing cap that utilizes a split ring that improves steerer tube interface. -
Description

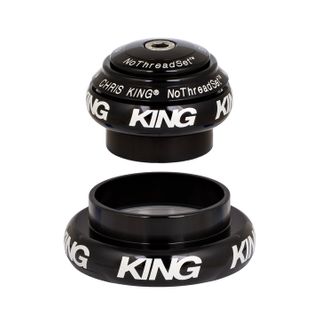

The NoThreadSet™ is built to be precise and dependable and sets the standard for quality headset function delivering precision performance to numerous world champions, grand tour winners, and aspiring riders around the world.
