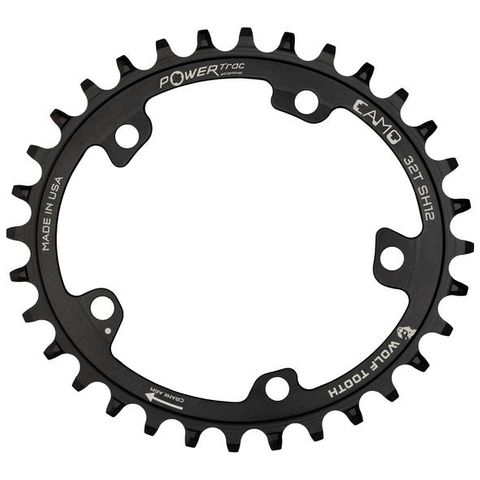

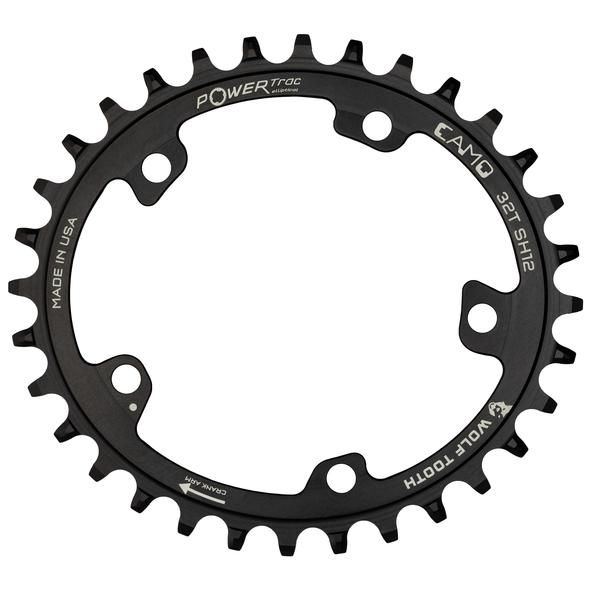

WOLF TOOTH CAMO ALUMINUM ELLIPTICAL 12SPD SHIMANO CHAINRINGS
Webshops and Bike shops
Related Products
-
Description
The perfect solution when you need something smaller than a 30t on your 104/64 BCD cranks or your 11-speed Shimano XT and SLX 96/64 BCD cranks. Also, they look great when paired with our 104 BCD bash ring on a 104/64 BCD crankset
- Fits any 104/64 BCD crankset (104 BCD is the middle/big position 64 is the smallest ring position)
- Drop-Stop® technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- Fits any 104/64 BCD crankset (104 BCD is the middle/big position 64 is the smallest ring position)
- The Universal Model fits both 104/64 BCD cranksets and the Shimano 11 speed XT M8000 cranks and SLX M7000 cranks.
- Drivetrains: 1x9, 1x10, 1x11 and 1x12 drivetrains
Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains
Shimano 12-speed chains require the use of our Shimano 12-speed specific chainrings
If using a 9-speed drivetrain use a 10-speed chain. It fits tighter for better chain retention
- Chainline (approximate as BB centering and cranksets vary)
Chainline is 46 mm on a triple and 48 mm on a double crank
Chainline on a Standard M8000 or M7000 crankset is 48mm and 50mm on a boost version.
You will use the stock bolts to mount this chainring -
Description
Direct Mount Chainrings for SRAM Cranks STANDARD / 6mm Offset FLATTOP
Compatibility
- These direct mount chainrings will replace your existing chainring and spider or replace the direct mount ring on SRAM cranksets including the DUB cranks. The ring is attached via 3 bolts on the back side of the spider near the spindle. Note that the SRAM 12spd Red and Force AXS use a different 8 bolt mounting interface that is not compatible with these chainrings.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- 10, 11, & 12spd Eagle and Flattop - These chainrings are designed to work with all 10 speed, and 11 speed chains. They also work with 12 speed SRAM Flattop, SRAM Eagle and KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain.Expected Date:31 May 2024 -

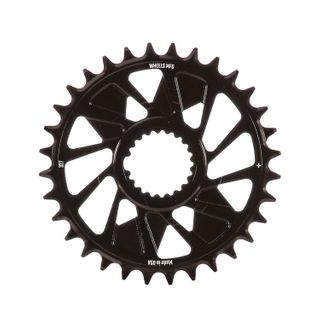

Description
These chainrings are for Shimano direct mount cranks. The Wolf Tooth chainrings feature our patented Drop-Stop® design for the best wear life, chain retention and mud clearance.
Compatibility
- Shimano XTR M9100, XT M8100, and SLX M7100 series 12 speed cranksets.
- Drop-Stop A for all 9, 10, and 11spd chains or 12spd SRAM Eagle, KMC, Connex or Wippermann chains. -

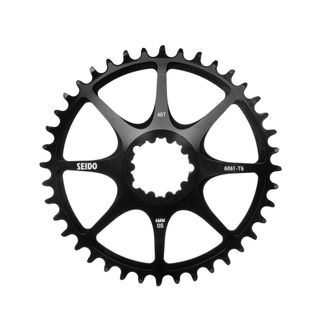

Description
High quality, forged and CNC machined Narrow-Wide Chainring, designed with the SRAM 3 bolt direct mount fitting.
- 6mm Offset -
Description
We designed these bolts to be the best on the market. These are 6 mm long so they work perfectly with any bolt on single chainring that does not have threaded standoffs.
