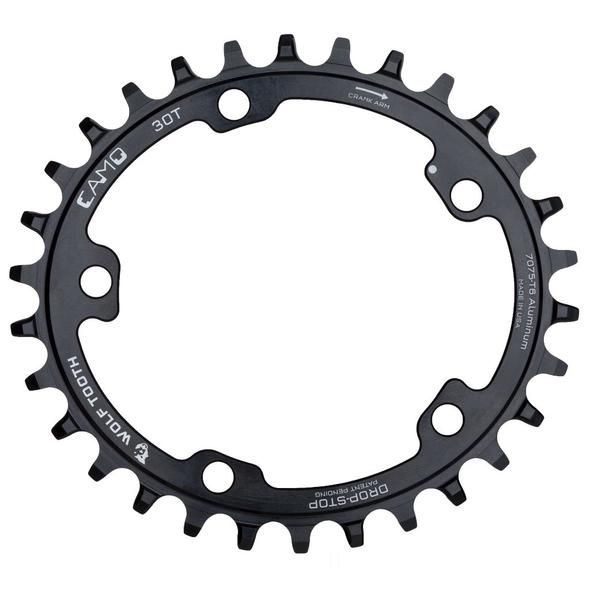

WOLF TOOTH CAMO ALUMINUM ELLIPTICAL CHAINRINGS
This is a CAMO Chainring ONLY. A CAMO Spider is required to complete this system.
Drop-Stop B for SRAM 12 spd Transmission (T-type) and Road Flattop chains, all 9, 10, and 11spd chains or 12spd SRAM Eagle, KMC, Connex or Wippermann chains.
Webshops and Bike shops
Related Products
-
Description
These chainrings are for Shimano direct mount cranks. The Wolf Tooth chainrings feature our patented Drop-Stop® design for the best wear life, chain retention and mud clearance.
Compatibility
- Shimano XTR M9100, XT M8100, and SLX M7100 series 12 speed cranksets.
- Drop-Stop ST for use with Shimano 12-speed Hyperglide+ chains. -
Description
The new Shimano XTR, XT, and SLX 12spd Hyperglide+ chain works differently than other products on the market so Wolf Tooth engineers developed a completely new tooth profile to provide optimal chain retention and durability when using this new chain technology.
- The new HG+ chain interacts with the chainring much differently than a traditional wide/narrow design. Wolf Tooth engineers spent the time to understand how the system works and design a new tooth profile that is optimized for this system.
- Engineered proprietary tooth profile maintains the quiet and smooth performance of the HG+ drivetrain with legendary Wolf Tooth chain retention.
- Prevents premature ring and chain wear that can come from non-optimized profiles.
Compatibility
- Compatible with Shimano 12-speed Hyperglide+ chains
- These rings fit on the Shimano XTR M9000 and M9020 1x or 2x cranksets
- Use only the stock Shimano XTR chainring bolts (M7)
- You will not use the stock bolt caps when mounting this ring. The stock bolts will thread into the chainring’s standoffs from the outside of the crankset.
- Chainline - 49 mm for 30-34T and 50 mm for 36T. Provides a great chainline on most boost bikes. -
Description
Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for the new SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have the SRAM T-Type Transmission groupset that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.
The 3mm offset is for SRAM MTB cranks with DUB WIDE spindles that are already at the 55mm chainline required for SRAM T-Type Transmission groupsets. -
Description
Wolf Tooth Direct Mount Chainrings for Trek TQ E-Bike Motors are compatible with all Boost and Super Boost bikes that use the Trek TQ Motor. This brings a lightweight chainring with patented Drop-Stop® technology to e-bike chainrings for the first time. Direct Mount Chainrings for Trek TQ E-Bike Motors are machined with 7075-T6 aluminum at Wolf Tooth in Minnesota, USA.
Compatibility:
- Chainring is compatible with only TQ Motor drive systems
- 55 mm chainline
- Drop-Stop ST for use with Shimano 12-speed Hyperglide+ and 12spd KMC chains.
(Use Drop-Stop B for all 9, 10, and 11spd chains or 12spd SRAM Eagle, SRAM Flattop Road or Transmission (T-Type), KMC, Connex or Wippermann chains.) -
Description
Drop-Stop ST is specifically for the Shimano 12-speed Hyperglide+ chain, which is used by GRX 12-speed.
These chainrings are for Shimano GRX cranks. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance
Compatibility
- Shimano GRX cranksets including RX600 and RX810
- Drop-Stop® ST is designed for Shimano 12-speed Hyperglide+ chains
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile provides the ultimate chain retention and mud shedding ability
