CHRIS KING GRIPNUT CONVERSION KIT 1-1/8"
Chris King Black 1-1/8" Grip Nut Conversion Kit
Kit includes lock nut, threaded collet,adjusting ring and baseplate – all the pieces
you'll need to convert a NoThreadSet or 2Nut to a GripNut.
Please note that this systemis not intended for use with spacers.
Webshops and Bike shops
Related Products
-
Description

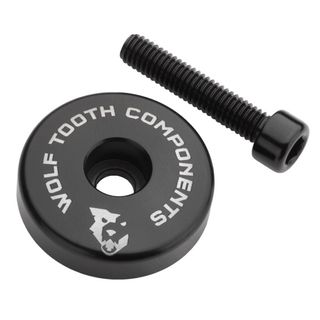

This stem cap is where your bike fashion sense and the weight weenie in you collide. This Ultralight and ultra-sleek stem cap integrates a 5mm, 10mm or 15mm headset spacer with your stem cap in finely machined piece. Why have extra steerer tube requiring spacers on top of your stem you ask? Well, many carbon steerers require that the steer tube extend above the stem. Also, riders may want the flexibility to move handlebar height up and down for different types of riding or for bike re-sale.
- 1 1/8" top (straight 1 1/8" or 1 1/2" to 1 1/8" taper) steerer tubes only -
Description
Chris King i2 Red Tapered 44/56mm headtube ( 1-1/8"/1.5" tapered fork)
This Chris King® threadless headset features a bearing cap design called GripLock™. GripLock™ is a multi-piece bearing cap that utilizes a split ring that improves steerer tube interface.
This Chris King® Inset™ headset is a low-stack threadless headset for newer model frames with oversized head tubes. Like other Chris King® headsets, it features user-serviceable stainless steel bearings. Chris King’s bearings are legendary because their design gives you years of trouble free performance with only routine maintenance.
This Inset™ headset fits bikes from a number of manufacturers. As long as your bike doesn’t require an integrated headset and matches precise specifications (see specification chart below) this Inset™ headset will perform beautifully on your bike.
It is absolutely essential that proper reaming and facing of your bike’s head tube be performed by a qualified mechanic during installation of this Inset™ headset. Also, please be aware that modifying a frame to make the Inset™ fit is not a proper method of installation. The proper installation of this headset is so important that you are encouraged to choose another headset if you are not able to have this Inset™ headset properly installed. We highly recommend that you carefully check your bike's specifications before ordering this headset and contact your bike manufacturer if necessary. Please note that we are unable to accept for return, exchange, or credit any headset that has been installed or has been attempted to be installed. This insures that all of our customers receive only pristine, brand new components. Thank you for your understanding. Once properly installed, this Chris King® Inset™ headset will give you years of world class performance.
You can buy with confidence from our Local Authorised webstores and retail outlets. They will provide Fast, Free, Reliable Shipping Australia wide.
A wealth of other information is available on the Chris King® website.
American made in USA (U.S.A.)
Specifications:
Headset Type: Inset 2 Threadless GripLock™ InSet™
Weight: 170 grams
Warranty: 10 years
Steer tube OD: 1-1/8”
Upper head tube bore ID (tolerances): 44.0 mm (+0, -.05)
Lower head tube bore ID (tolerances): 55.95 mm (+0, -.05)
Upper cup minimum ream depth: 8 mm
Lower cup minimum ream depth: 11 mm
Fork crown seat OD: 39.8 mm
Press fit tolerance: .1 mm
Upper stack height: 8.2 mm
Lower stack height: 4.2 mm
Stem cap screw torque: 6-15 in. lbsExpected Date:06 June 2024 -
Description
Designed specifically for bicycles, Chris King made-in-house bearings are built to last a lifetime, fully serviceable, and backed by our ten-year built-to-last warranty.
- Engineered, manufactured and assembled in Portland, Oregon USA
-10-year built-to-last warranty
- Legendary made-in-house bearings
- Patented GripLock® retention design for exclusively reliable headset adjustment
- Compatible with our baseplate or integrated crown races
Compatible with Santa Cruz, Yeti, Alchemy, Santa Cruz Stigmata (without baseplate), and more.
- 41mm 45x45 upper bearing
- 52mm 45x36 lower bearing -
Description
Lightweight and strong duraluminum alloy construction
Tange Seiki original sized 45 1- 1/8" (41.8mm) Cartridge Bearing upper
Tange Seiki original sized 45/45 1.5” Cartridge bearing lower
Fully Sealed Mechanism
16mm stack height
