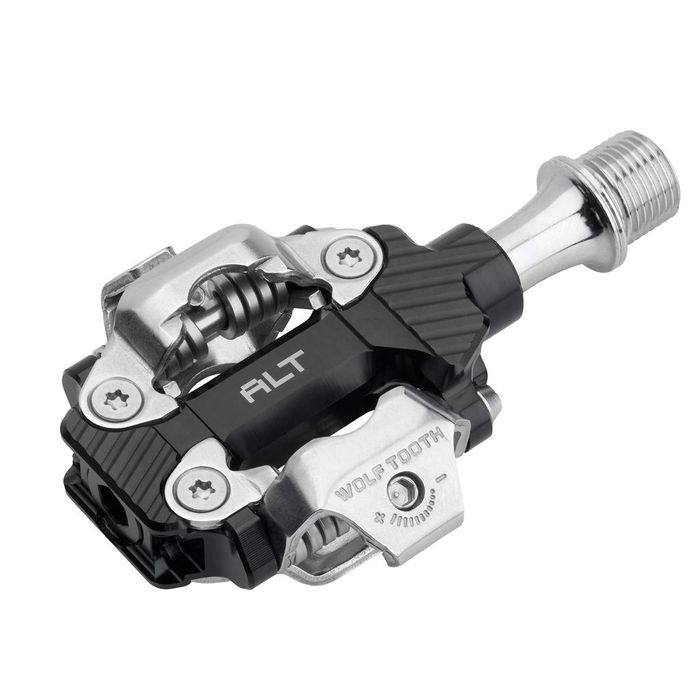

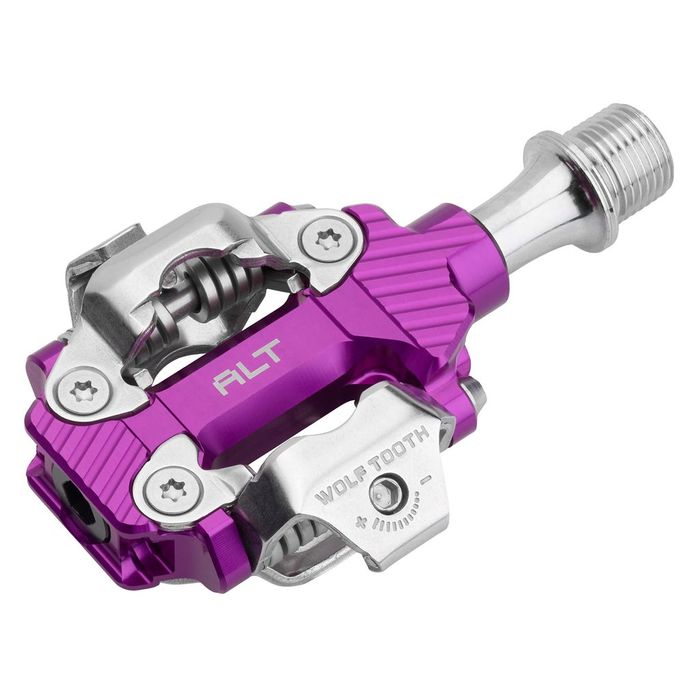

Wolf Tooth ALT XC Clipless Pedal
Wolf Tooth ALT XC Clipless Pedals are designed for commanding performance on trails and gravel roads. These pedals are simultaneously lighter and thinner than their Shimano, Hope, and HT counterparts, with an exceptionally low stack height, while also having more platform area for control and power transfer. This body design also features a more open center for better mud clearance than other clipless bike pedals. The SPD-compatible clip-in/out experience is quick and precise, with Wolf Tooth cleats included.
The ALT XC Clipless Pedals have an adjustable Q factor in 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacers. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including four 2 mm spacers is available for purchase to further fine tune Q Factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.
Thinner than the competition at 15 mm (compared to Shimano XTR 9200 at 16.5 mm, Hope RC at 18 mm, and HT M2 at 17.6 mm)
Lighter than the competition at 294 g (compared to Shimano XTR 9200 at 316 g, Hope RC at 322 g, and HT M2 at 306 g)
Larger platform area than the competition at 345 mm² (compared to Shimano XTR 9200 at 144 mm², Hope RC at 420 mm², and HT M2 at 357 mm²)
Adjustable Q factor options of 51, 55, and 59 mm
5 degrees float | 12 degrees release
SPD compatible
Proven axle and bearing design from Waveform Aluminum Pedals
Designed, tested, and machined at Wolf Tooth in Minnesota, USA
Wolf Tooth ALT XC Clipless Pedals are designed for commanding performance on trails and gravel roads. These pedals are simultaneously lighter and thinner than their Shimano, Hope, and HT counterparts, with an exceptionally low stack height, while also having more platform area for control and power transfer. This body design also features a more open center for better mud clearance than other clipless bike pedals. The SPD-compatible clip-in/out experience is quick and precise, with Wolf Tooth cleats included.
The ALT XC Clipless Pedals have an adjustable Q factor in 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacers. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including four 2 mm spacers is available for purchase to further fine tune Q Factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.
Thinner than the competition at 15 mm (compared to Shimano XTR 9200 at 16.5 mm, Hope RC at 18 mm, and HT M2 at 17.6 mm)
Lighter than the competition at 294 g (compared to Shimano XTR 9200 at 316 g, Hope RC at 322 g, and HT M2 at 306 g)
Larger platform area than the competition at 345 mm² (compared to Shimano XTR 9200 at 144 mm², Hope RC at 420 mm², and HT M2 at 357 mm²)
Adjustable Q factor options of 51, 55, and 59 mm
5 degrees float | 12 degrees release
SPD compatible
Proven axle and bearing design from Waveform Aluminum Pedals
Designed, tested, and machined at Wolf Tooth in Minnesota, USA
Webshops and Bike shops
Related Products
-
Description
MKS Sylvan Track Silver Pedal
Replica design of the classic Campagnolo track pedal. Aluminum body, CrMo spindle. These are very nice, with excellent road clearance. (Track pedals are a minimalist variation on traditional clip-and-strap type pedals, with a cutaway outer portion for better clearance.)
Bearings can be serviced/adjusted in the traditional manner.
The classic. Good for all kinds of riding, especially urban fixed, because of its clearance. Cheap and strong.
Width from arm = 89 mm Weight = 340 grams/pair. -
Description
Each side of the pedal has 11 stainless steel rear-loading pins for loads of traction. The design also features a large, tapered leading edge to deflect pedal strikes on rough terrain. A custom radial seal protects three fully sealed cartridge bearings for low-friction riding in all conditions.
- Two sizes: Large is 112mm x 106mm, small is 105mm x 99mm
- Three high-precision, low-friction sealed bearings designed specifically for this pedal, with one igus bushing
- Custom radial seal to protect internal hardware from water, dirt, and trail debris
- Eleven stainless steel, rear-loading 4.5mm pins per side
- Dual Concavity secures your feet firmly in place on the pedals, both front-to-back and side-to-side
- Tapered leading edge deflects pedal strikes.
Weight: Large set 384g | Small set 373gExpected Date:30 October 2025 -
Description
Each side of the pedal has 11 stainless steel rear-loading pins for loads of traction. The design also features a large, tapered leading edge to deflect pedal strikes on rough terrain. A custom radial seal protects three fully sealed cartridge bearings for low-friction riding in all conditions.
- Two sizes: Large is 112mm x 106mm, small is 105mm x 99mm
- Three high-precision, low-friction sealed bearings designed specifically for this pedal, with one igus bushing
- Custom radial seal to protect internal hardware from water, dirt, and trail debris
- Eleven stainless steel, rear-loading 4.5mm pins per side
- Dual Concavity secures your feet firmly in place on the pedals, both front-to-back and side-to-side
- Tapered leading edge deflects pedal strikes.
Weight: Large set 384g | Small set 373g -
Description

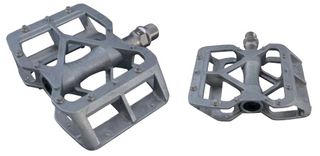

Limited Edition Allways Zombie
- Designed as a highly versatile pedal for road, touring, commuting and offroad.
- Concave design with removable grip pins.
- Triple sealed bearing system provides smooth rotation and long life. -
Description
Following the success of the LAMBDA commuter pedal, MKS has continued to collaborate with the Rivendell Bicycle Works and has co-developed the GAMMA gravel and mixed surface pedal.
The GAMMA is built around the proven pedal body used on the LAMBDA, paired with a new step block that has been designed in close partnership with Rivendell Bicycle Works.
Retaining a similar profile shape to the LAMBDA- consisting of an elongated double-sided step block that’s narrow enough to handle corners. We have "squared off" the pedal, reduced the stack height (lowered the overall height), and added 32 replaceable anti-slip grip pins to proved an outstanding hold on a remarkably stable pedal.
The GAMMA is available in two colors, shot blasted natural aluminum or shot blasted black paint.
The patented Ezy Superior system allows for safe, rapid, and toolless removal of pedals for travel, storage, or flexibility. Particularly popular as an upgrade for folding bicycles, those who take their bikes on mass transit, or travel bikes with coupler systems our Ezy Superior system can dramatical improve ride quality while saving space.Expected Date:17 October 2025
