SOMA MTB FORK
A riigid CrMo fork suspension adjusted to mimic the length of 26" wheel with 100mm travel forks. Also recommended for 650b bikes designed around 80mm travel forks.
– Tange Infinity CrMo
– Axle to crown: 453mm
– Steerer: 250mm threadless, 1-1/8"
– Hub spacing: 100mm (for QR axle hubs)
– 43mm rake
– IS disc mount
– Low rider pannier bosses
– Fender eyelet on dropout
Webshops and Bike shops
Related Products
-
Description
This fork is only to be sold with Wolverine frames or as a replacement for a Wolverine. We don't stock enough for general sales. - Flat lugged crown
– Tange Infinity CrMo steel
– Flat lugged crown
– IS Disc mount
– Double eyelets at fork tips
– Mini rack mounts
– Low rider pannier mounts
– 50mm rake
– 400mm axle to crown -
Description
The MCX Max TA is a monster cross/gravel carbon fork with clearance to fit 29 x 2.1" tires and 27.5" x 2.25" tires. Extra long 350mm aluminum steerer (Most carbon forks have steerers only 280-300mm long)
(There is also two lighter MCX models that have straight 1-1/8" steerers and is available in QR or thru-axle. )
– Axle to crown: 406mm
– Rake: 50mm
– 15x100mm thru-axle
– Brake mount: Flat mount disc
– Internal cable routing
– Triple accessory bosses
– Single set of fender eyelets
– Steerer: Aluminum, 1-1/8"-1-1/2" tapered x 350mm
– Weight: 970g (including thru-axle and extra long uncut steerer)
– Matte Black finish -
Description
For those who want a little more front end stiffness out of their Wolverine.
– Tange Infinity CrMo
– Unicrown straight blade
– 405mm axle to crown
– 50mm rake
– Fits 700x45mm tires with
fenders (this has slightly less
clearance than the lugged)
– Low rider pannier mounts
* 15mm TRU-AXLE INCLUDED -
Description
Straight blade carbon fork with disc mount and alloy steerer. (The steerer on this fork is 300mm long and is too short for the size 66cm frame. Please use the CrMo fork for that size)
– Flat mount disc brake interface
– 12 x 100 thru-axle
– Fender eyelets
– Internal cable routing
– Axle to crown: 400mm
– Rake: 48mm
– Steerer: 1-1/8? alloy (300mm long)
– Crown width: 45mm
– Max tire width: 700 x 45
– Weight: 815g -

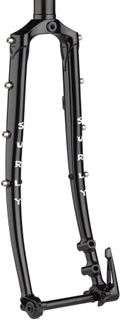

Description
Equipped to make touring the wide world’s paved roads a little more comfortable, the Disc Trucker Thru-Axle Fork has three-pack mounts on each blade to give you space for racks, fenders, and additional cargo solutions. Available in 26? and 700c wheel sizes, it offers dynamo routing, a 1-1/8? threadless steerer tube, and compatibility with 12mm captured thru-axles and flat-mount disc brakes.
Brake Mount (Fork): Flat Mount 160
Wheel Size: 26"
Crown Race: 30
Front Axle: 12mm Thru x 100mm
Steerer Type: Straight
Offset: 45
Material: Steel
Steerer Tube Length (mm): 400
Maximum Tire Clearance (Fork): 26x2.1
S.H.I.S. Stem Clamp Diameter: 28.6
Axle to Crown Length: 376
Max Rotor Size (Fork): 160POA
