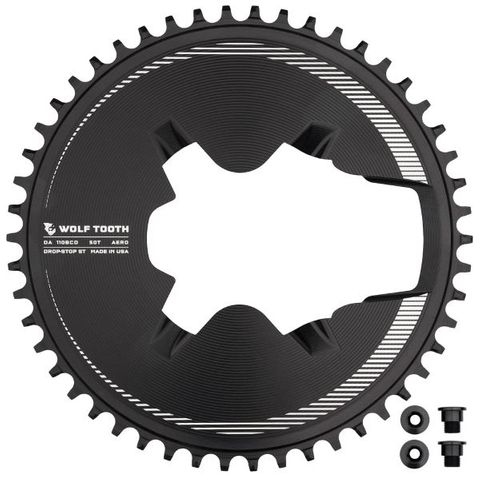

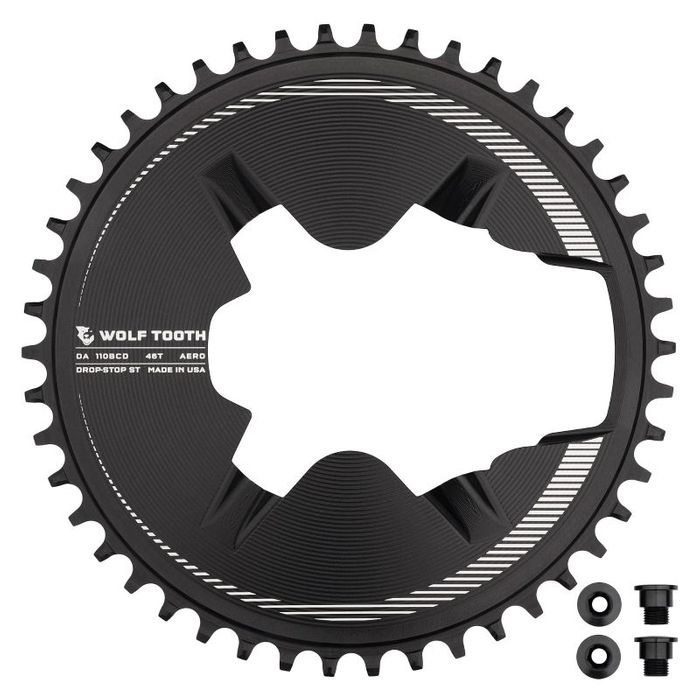

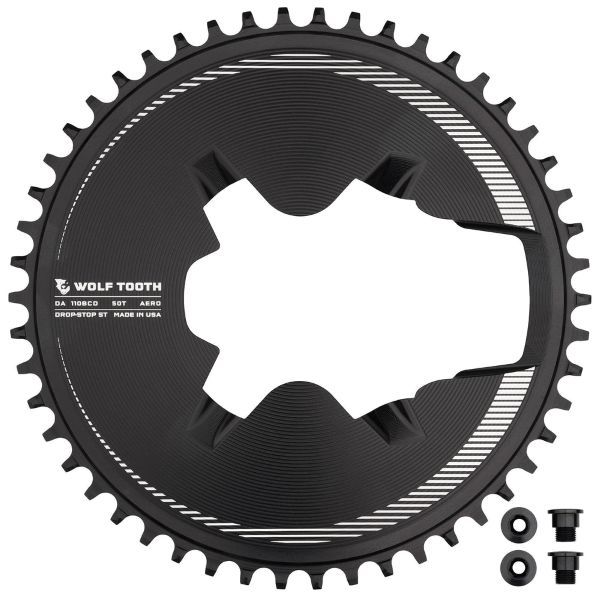

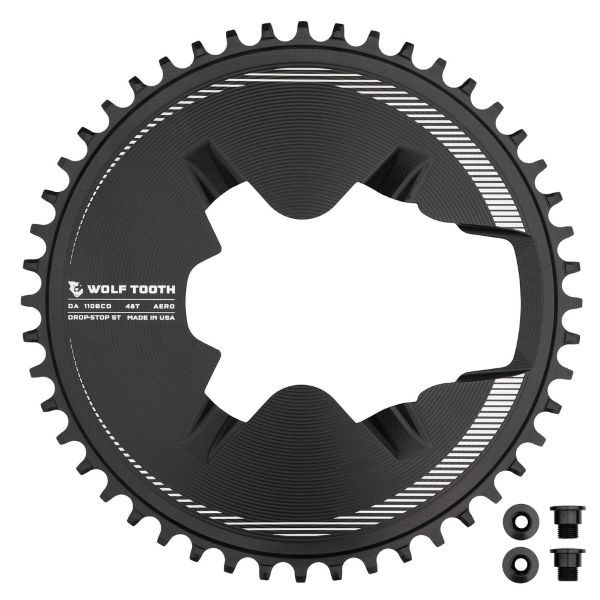

WOLF TOOTH AERO SHIMANO R9200 CHAINRINGS

Related Products

•

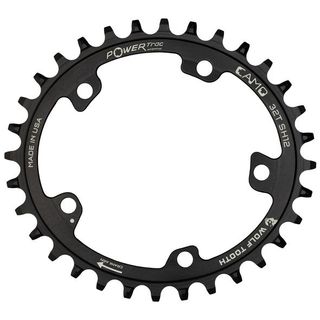

  Wolf Tooth CAMO Alum Elliptical 12s 32t

  $104.03 (RRP)

  Qty:
•

  Wolf Tooth Elliptical96 XT M8000 32t

  Description

  - These rings fit on the Shimano XT M8000 and SLX M7000 1x or 2x cranksets.
  - Use only the stock Shimano XT M8000 or SLX M7000 chainring bolts
  - These CAN be mounted to the XTR 9000 series cranks, but you will have to use the bolt caps that come with that crankset and you will need to file roughly 1mm off the threaded boss on each bolt cap (they are a little too long and don't allow the ring to be tightened down).
  - Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
  - For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
  Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
  If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).

  - Provide a great chainline on most boost bikes.
  - Chainline - 49mm
  - Boost Crankset Chainline - 52 mm
  - Must use the stock chainring bolts. The Wolf Tooth chainring bolts are a different size.
  - Ovality of 10% and timing of 112° after TDC (top dead center)
  - Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)

  More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.

  It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.

  Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum.

  $170.00 (RRP)

  Qty:
•

  Wolf Tooth Elliptical DM SRAM 8-bolt 38t

  Description

  More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.

  Direct mount chainrings for SRAM cranks with 8-bolt mounting replace your existing spider and chainring with one clean looking, lightweight, and stiff piece of machined billet.

  Compatibility

  - These direct mount chainrings will replace your existing chainring and spider or replace the direct mount chainring for SRAM AXS cranksets and other cranks that use the 8-bolt mounting. Most SRAM cranksets have traditionally used a 3-bolt mounting, but the 8-bolt mounting has always been used on the Quarq power meter cranks. Now some non-power meter cranks like SRAM AXS use the 8-bolt mounting.
  - All SRAM Direct Mount DUB road cranksets use the 8-bolt mounting standard. These cranksets use either 107 BCD or 94 BCD; any of those cranksets with a removable spider use the 8-bolt mount.
  - Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud-shedding ability
  - 6mm offset
  - Chainline 45mm

  Use for all 9, 10, and 11spd chains or 12spd SRAM Eagle, SRAM Flattop, Campagnolo, KMC, Connex or Wippermann chains.

  $180.00 (RRP)

  Qty:
•

  Wolf Tooth DM SRAM MTB 8-bolt 30t

  Description

  Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for the new SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have the latest SRAM T-Type Transmission groupset that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.

  The 3mm offset is for SRAM MTB cranks with DUB WIDE spindles that are already at the 55mm chainline required for SRAM T-Type Transmission groupsets.

  Compatibility

  - These direct mount chainrings will replace your existing chainring and spider or replace the direct mount chainring for SRAM AXS cranksets and other cranks that use the 8-bolt mounting. Most SRAM cranksets have traditionally used a 3-bolt mounting, but the 8 bolt mounting has always been used on the Quarq power meter cranks. Now some non-power meter cranks like SRAM AXS use the 8-bolt mounting.

  - Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud-shedding ability
  - 3mm offset
  - Chainline 55mm

  $170.00 (RRP)

  Qty:
•

  Wolf Tooth DM SRAM MTB 8-bolt 36t

  Description

  Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for the new SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have the latest SRAM T-Type Transmission groupset that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.

  The 3mm offset is for SRAM MTB cranks with DUB WIDE spindles that are already at the 55mm chainline required for SRAM T-Type Transmission groupsets.

  Compatibility

  - These direct mount chainrings will replace your existing chainring and spider or replace the direct mount chainring for SRAM AXS cranksets and other cranks that use the 8-bolt mounting. Most SRAM cranksets have traditionally used a 3-bolt mounting, but the 8 bolt mounting has always been used on the Quarq power meter cranks. Now some non-power meter cranks like SRAM AXS use the 8-bolt mounting.

  - Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud-shedding ability
  - 3mm offset
  - Chainline 55mm

  $180.00 (RRP)
