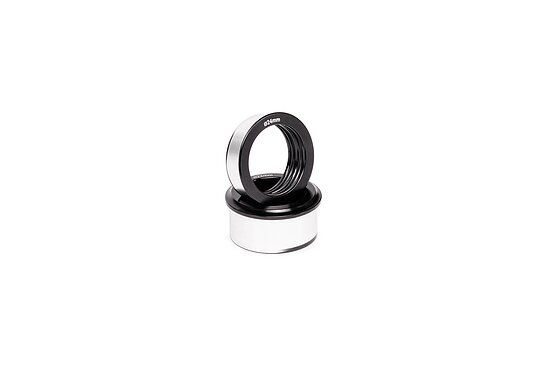

SEIDO T47 SPINDLE ADAPTER
Sram GXP adapter for use with all SEIDO T47 30 mm Bottom Brackets
Sram DUB 29mm adapter for use with all SEIDO T47 30 mm Bottom Brackets
Webshops and Bike shops
Related Products
-
Description
Wheels Manufacturing standard outboard bottom bracket features Enduro ABEC 5 Angular Contact sealed bearings. Compatible with 24mm (Shimano, FSA, Etc.) cranks. Fully serviceable.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Weight: 98g
Road (68mm Shell width) - Grey anodized, machined aluminum cups
Mountain (73mm Shell width) - Black or Red anodized, machined aluminum cups
Enduro ABEC 5 Angular Contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm spindle (Shimano, FSA, Etc.) cranks -
Description
Wheels Manufacturing’s new PressFit 30 to Outboard bottom bracket with Enduro Ceramic Hybrid bearings is designed for installing 24/22mm (SRAM, Truvativ, Etc.) cranks into PF30 frames without the need for any adapters.
Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro Ceramic Hybrid sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm (SRAM, Truvativ, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 46mm -
Description
Thread together bottom bracket for frames using the BBRight™ bottom bracket standard and BB386 30mm spindle diameter cranks. Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Note: Spindle length must be equivalent to a BB386 length*
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BBRight™ Press Fit
Bottom Bracket Shell Width: 79mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Tool Pattern: 48.5mm x 16 notch
Over Bearing Width: 91.5mm in 79mm wide shell* -
Description
For DUB mountain cranks there are a few extra fitments notes to be aware of.
If you have a 68mm BB shell and a T47 bottom bracket you will need two of these 2.5mm Cup Spacers. SOLD INDIVIDUAL. -
Description
** FIT KIT REQUIRED FOR USE **
ThreadFit™ T47 30x fits 68mm and 73mm shell widths with 30mm spindles.
This bottom bracket comes packed with King’s legendary, angular-contact bearings. These are the best bearings in the industry, and actually get faster over time, as their contact surfaces wear.
You want this bottom bracket because it offers super low drag. You want this bottom bracket, because it can be opened, cleaned and repacked for years of faithful service. You want this bottom bracket, because you don’t want to think an awful lot about your bottom bracket.
- King Lifetime Warranty
- Legendary made-in-house bearings
- Engineered, manufactured and assembled in Portland, Oregon USA
- Uses Chris King bottom bracket cup tool for installation
