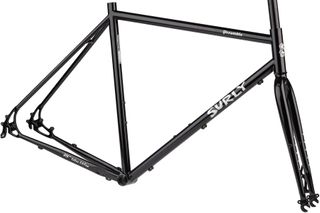

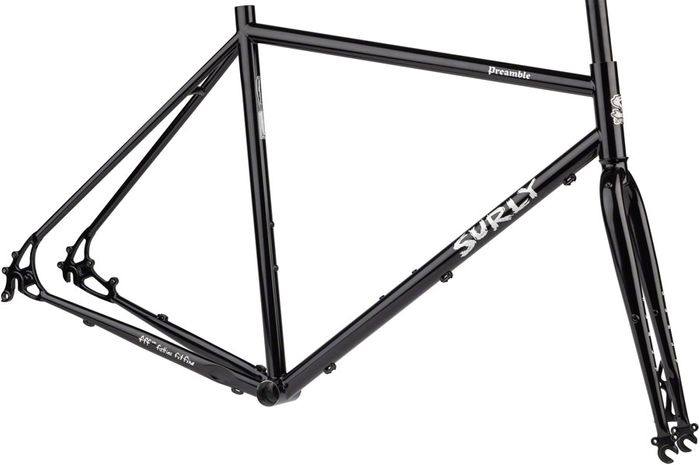

SURLY PREAMBLE FRAMESET BLACK
The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.
Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.
Let facts be submitted to a candid world: Offered in flat-bar and drop-bar configurations
Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
Sloping top tubes on XS and Small frames for improved standover and comfort
To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c
Custom-cast single-position vertical dropout
The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.
Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.
Let facts be submitted to a candid world: Offered in flat-bar and drop-bar configurations
Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
Sloping top tubes on XS and Small frames for improved standover and comfort
To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c
Custom-cast single-position vertical dropout
The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.
Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.
Let facts be submitted to a candid world: Offered in flat-bar and drop-bar configurations
Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
Sloping top tubes on XS and Small frames for improved standover and comfort
To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c
Custom-cast single-position vertical dropout
The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.
Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.
Let facts be submitted to a candid world: Offered in flat-bar and drop-bar configurations
Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
Sloping top tubes on XS and Small frames for improved standover and comfort
To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c
Custom-cast single-position vertical dropout
The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.
Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.
Let facts be submitted to a candid world: Offered in flat-bar and drop-bar configurations
Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
Sloping top tubes on XS and Small frames for improved standover and comfort
To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c
Custom-cast single-position vertical dropout
Webshops and Bike shops
Related Products
-
Description
The Grand Randonneur is a road frame optimized to carry a front load. We have equipped it with rear rack mounts, but it feels best with a front load only. The version 3 of the "Grando" makes quite a few updates.
• The geometry is still low trail in the front, but we have tried to make the handling slightly more stable than version 1 and 2.
• We have tweaked the tubing mix to add stiffness at the bottom bracket, while keeping this frame our lightest model.
• We have modernized parts of it: Adding IS disc mounts and thru-axle hubs compatibility. And of course everyone wants just slightly more tire clearance.
• With its skinny steel tubes and 1" threaded lugged crown fork it still has the vintage road bike look.
• Tange Prestige CrMo tubes, double-butted
• Threaded 1" lugged crown fork is equipped with low rider pannier bosses, mini rack eyelets and double eyelets at the dropouts. Thru-axle hub compatible. IS disc mounts
• Designed for 650b wheels
• Max. tire fit: 650 x 47mm semi-knob tire
(Max. fender width: 50mm)
• Modular rear dropouts: Stock set up is for 142mm x 12mm thru-axle with IS disc mounts.
• Rear rack and fender eyelets
• Pump peg at headtube
• 3 sets of water bosses
• Headset type: 1" ISO Threaded external cups(EC30/25.4|EC30/26) (Needle/Roller bearings recommended)
• Seatpost fit: 27.2mm
• Weight: Frame: 4.25 lbs Fork: 2.35 lbsPOA -
Description
The original inspiration for the Wolverine was “monster cross”, but it is seriously so much more. Its geometry is stable enough for off road touring, but sporty enough for all-around adventure.
The primary differences between the version 3.0 Wolverine and the v. 4 Type-A and B is an extra set of water bottle bosses, and additional stack height on most sizes.
The Type-A ALSO adopts more modern standards such as 142mm rear thru-axle and a 44mm headtube that will fit 1-1/8 straight steerer or tapered steerer with the proper headset type. NO frame break for Belt-Drive. (See chart for other differences between A and B)
- Tange Prestige heat-treated CrMo front triangle; butted CrMo rear end
- Clearance for 700x45c tires w/ fenders
- Rear hub spacing/type: 142 x12mm Thru-Axle
- IRD Broski sliding dropouts allow for geared or single-speed builds
Optional Matching Fork: Unicrown straight blade 15mm thru-axle fork with cage bosses (1-1/8”)
No lugged crown fork offered for the Type-B
- Braze-ons for rear rack and fenders (disc brake-compatible racks only)
- Three sets of water bottle bosses
- 44mm headtube (Use ZS44/28.6-ZS44/30 headset for 1-1/8” steerers) (Use ZS44/28.6 -EC44/40 headsets for 1-1/8”-1-1/2” steerers)
- Sizes: 46, 50, 52, 54, 56, 58. 60, 62 and 66cm (We recommend 650b tires on the 46cm) -
Description
The original inspiration for the Wolverine was “monster cross”, but it is seriously so much more. Its geometry is stable enough for off road touring, but sporty enough for all-around adventure. With its sliding dropouts, you can turn it into a single-speed CX bike. With a split seatstay, it is compatible with the Gates Carbon Belt Drive.
The primary differences between the 4.0 and 4.1 is that the frame and forks now fit the flat mount brake standard.
- Tange Prestige butted and heat-treated CrMo front and rear triangle
- Clearance for 700x45c tires w/ fenders
- Rear hub spacing:135mm (10mm QR, can be upgraded to 142mm 12mm TA with different inserts )
- Gates Carbon belt drive compatible
- IRD Broski sliding dropouts allow for geared or single-speed builds
- Optional Matching Forks:
A) Lugged flat crown standard QR axle, Tange Infinity CrMo steel fork with double eyelets pannier rack and mini rack mounts.
B) Unicrown straight blade 15mm thru-axle fork w/ triple boss mounts
- Braze-ons for rear rack and fenders (disc brake-compatible racks only)
- Three sets of water bottle bosses
- 1-1/8” size headtube (34mm ID)
- Sizes: 46, 50, 52, 54, 56, 58. 60, 62 and 66cm (We recommend 650b tires on the 46cm)
- 4.79 lbs (frame);
- Paint: Lunar Rock -
Description
Designed to introduce unfamiliar riders to Surly’s pavement and gravel line, Preamble highlights Surly’s most essential features: Durable custom steel tubing, a renowned ride feel, and just the right mounts for running racks, fenders, and bottle cages. It’s disc-brake specific and shares a single-position vertical dropout with Surly Bridge Club.
Rear Hub Spacing: "Gnot-Boost"138mm 10 x 135mm or 10 x 141mm
Front Hub Spacing: 10 x 100mm
Rear Brake: Disc - 51mm I.S. (180mm max rotor)
Front Brake: Disc - 51mm I.S. (203mm max rotor)
Headtube: Ø34mm
Seat Collar: Ø30.0mm
Max Chainring: 1x (47CL): 42T 2x (47CL): 46/36T
Bottom Bracket: 68mm BSA, threaded
Tyre Clearance Frame:
XS-SM frames: 650b x 41mm (with or without fenders)
MD-XL frames: 700c x 41mm (with or without fenders)
Tyre Clearance Fork:
XS-SM frames: 650b x 47mm (with or without fenders)
MD-XL frames: 700c x 44mm (with or without fenders)POA -
Description
The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.
Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.
Let facts be submitted to a candid world: Offered in flat-bar and drop-bar configurations
Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
Sloping top tubes on XS and Small frames for improved standover and comfort
To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c
Custom-cast single-position vertical dropoutPOA
