- Wheels MFG 22mm Outer Silicone Seal
Wheels MFG 22mm Outer Silicone Seal
Description
22mm x 41mm GXP outer seal for Wheels Mfg bottom brackets. This seal is for the non-drive side cup when using 24/22mm spindle cranksets (SRAM, Truvativ, etc).

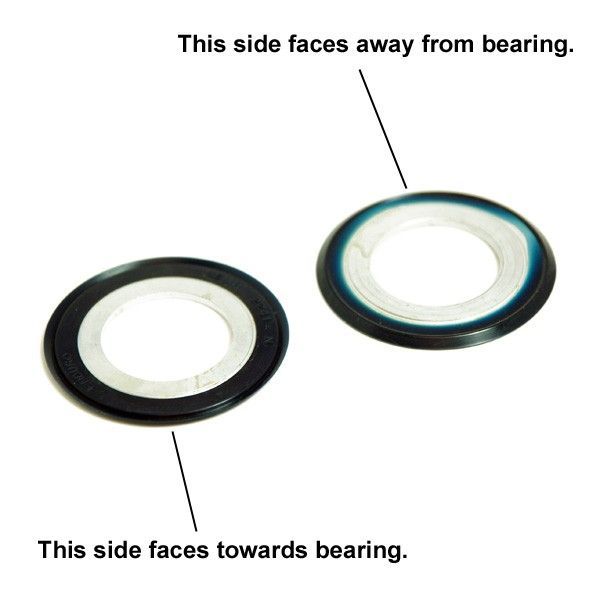

Note: Install seal with lettering facing towards the bearing.
Fits the following bottom brackets:
- BB30 / PF30 Outboard
- BB86/92
