BlackBearing Bushing Bosch Axle Gen4
Description

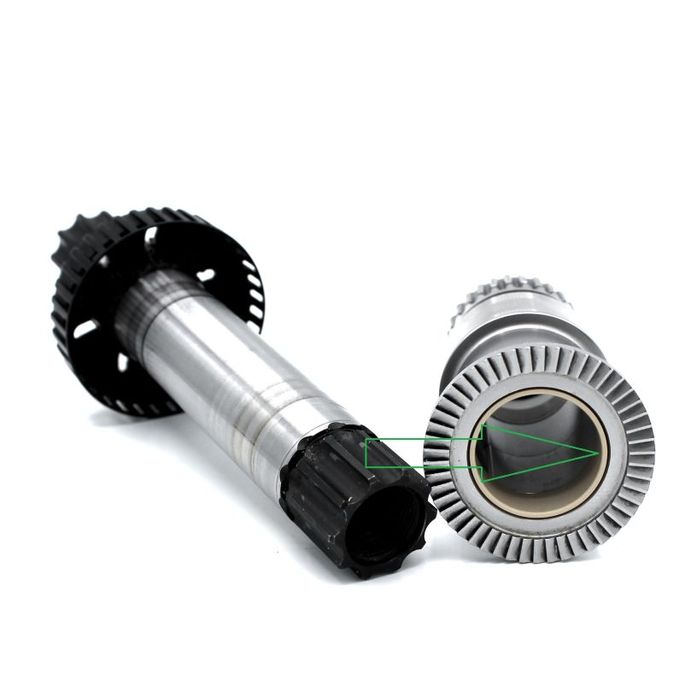

This bushing is designed to be installed on the crankset axle of the Gen 4 Bosch motor.
It is strongly recommended replacing both bushings per motor for optimal performance.
When the friction bushings wear out, play may develop in the crankset axle, even after replacing the bearings included in the EM-026-BOSCH service kit (or with individual bearing replacements). As this part is not sold separately by Bosch, their official recommendation is to replace the entire motor unit when axle play occurs.
BlackBearing offer an alternative!
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-BBRIGHT-OUT-9
BBRight™ Outboard Angular Contact BB for use with 24/22mm spindle (SRAM) cranks. Fully serviceable.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
Weight: 98g
Black anodized, machined aluminum cups
Enduro Angular Contact bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm spindle (SRAM) cranksets.$219.00 (RRP) -
Stock Code:WMBB-386EVO-BB-AC
Threaded BB for 386EVO frames. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance. In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
No more creaking. Smooth operation. Fast bearing replacement.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
Bearings: Enduro Angular Contact
Bottom Bracket/Frame Interface: BB386EVO
Bottom Bracket Shell Width (mm): 86.5mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Weight: 126g
*Will accept 24mm and 24/22mm cranksets using Wheels Mfg. 386EVO BB / Crank Adapters$219.00 (RRP)Add To Cart
-
Stock Code:WMBB-BB-T47A-30MM
T47a (asymmetrical) threaded BB cups for T47a frames and 30mm diameter spindle compatible cranks. Cups have internal bearings, and can be used in BB shells with widths from 77.5 - 79mm. Machined aluminum cups thread together directly into a Cervelo, Factor and Felt T47a BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle. T47a BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
T47 external cup on the drive side
T47 internal cup on the non-drive side
Compatibility
- Cervelo T47a 79mm shell width
- Factor T47a 77.5mm shell width
- Felt T47a 77mm shell width$227.00 (RRP)Add To Cart
-
Stock Code:WMBB-BB86-OUT-BBStock Code:WMBB-BB86-OUT-BB-1Stock Code:WMBB-BB86-OUT-BB-3Stock Code:WMBB-BB86-OUT-BB-6Stock Code:WMBB-BB86-OUT-BB-5Stock Code:WMBB-BB86-OUT-BB-7
Our new BB86/92 thread together bottom bracket is a technical advancement of our well-loved slip fit BB86 bottom brackets. The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Directly replaces all OEM BB86/92 bottom brackets. Overall width is still the same as all other BB86 bottom brackets.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BB86, BB92
Bottom Bracket Shell Width (mm): 86mm, 92mm, 89.5mm
Bottom Bracket Shell I.D.: 41mm
Crank Spindle Type: Shimano Hollowtech II, FSA MegaExo, RaceFace EXI
Crank Spindle Diameter: 24mmExpected Date:29 August 2025$216.00 (RRP)$216.00 (RRP)$216.00 (RRP)$216.00 (RRP)$216.00 (RRP)$216.00 (RRP) -
Stock Code:BBBB-46-68/73-D-B5
The Blackbearing bottom bracket range has been specifically developed to withstand the most extreme conditions.
The BBlock technology (built in 2 threadable parts) allows a better alignment of the casing in its assembly offering several advantages:
- minimizes possible cracks
- greater protection to the bearing extending its useful life
- an easier replacement of the bearing.
CNC machined aluminum.$122.98 (RRP)Add To Cart
