SOMA FOG CUTTER FRAME CERULEAN BLUE
The Fog Cutter is an endurance road/road sport design. We designed it to fit fatter tires, but its geometry makes it handle like a road bike rather than CX or gravel bike. It can float you over chewed up asphalt better than most bikes in this category. This is the frame you want for grand fondos, long days in the saddle and the most demanding commutes.
Tange Prestige double butted CrMo steel tubing; heat treated throughout
• Road sport geometry
• Rear rack & fender mounts
• Tange Modular dropouts. Stock setup is for 142mm thru-axle hubs and flat mount disc brakes. Alternative styles available thru Tange/Long Shen.
• Fork options: Matching straight blade carbon fork (alloy steerer, flat mount, 12 x 100 thru-axle hub) or lugged CrMo steel fork (CrMo steerer, IS disc mount, QR hub)
• Tire clearance for 700c x38mm with fenders (some front derailleurs will limit tire clearance) and 650b x 42mm
• Fits 1-1/8" headset (EC34/28.6|EC34/30 headsets)
- 27.2mm post size
The Fog Cutter is an endurance road/road sport design. We designed it to fit fatter tires, but its geometry makes it handle like a road bike rather than CX or gravel bike. It can float you over chewed up asphalt better than most bikes in this category. This is the frame you want for grand fondos, long days in the saddle and the most demanding commutes.
Tange Prestige double butted CrMo steel tubing; heat treated throughout
• Road sport geometry
• Rear rack & fender mounts
• Tange Modular dropouts. Stock setup is for 142mm thru-axle hubs and flat mount disc brakes. Alternative styles available thru Tange/Long Shen.
• Fork options: Matching straight blade carbon fork (alloy steerer, flat mount, 12 x 100 thru-axle hub) or lugged CrMo steel fork (CrMo steerer, IS disc mount, QR hub)
• Tire clearance for 700c x38mm with fenders (some front derailleurs will limit tire clearance) and 650b x 42mm
• Fits 1-1/8" headset (EC34/28.6|EC34/30 headsets)
- 27.2mm post size
The Fog Cutter is an endurance road/road sport design. We designed it to fit fatter tires, but its geometry makes it handle like a road bike rather than CX or gravel bike. It can float you over chewed up asphalt better than most bikes in this category. This is the frame you want for grand fondos, long days in the saddle and the most demanding commutes.
Tange Prestige double butted CrMo steel tubing; heat treated throughout
• Road sport geometry
• Rear rack & fender mounts
• Tange Modular dropouts. Stock setup is for 142mm thru-axle hubs and flat mount disc brakes. Alternative styles available thru Tange/Long Shen.
• Fork options: Matching straight blade carbon fork (alloy steerer, flat mount, 12 x 100 thru-axle hub) or lugged CrMo steel fork (CrMo steerer, IS disc mount, QR hub)
• Tire clearance for 700c x38mm with fenders (some front derailleurs will limit tire clearance) and 650b x 42mm
• Fits 1-1/8" headset (EC34/28.6|EC34/30 headsets)
- 27.2mm post size
The Fog Cutter is an endurance road/road sport design. We designed it to fit fatter tires, but its geometry makes it handle like a road bike rather than CX or gravel bike. It can float you over chewed up asphalt better than most bikes in this category. This is the frame you want for grand fondos, long days in the saddle and the most demanding commutes.
Tange Prestige double butted CrMo steel tubing; heat treated throughout
• Road sport geometry
• Rear rack & fender mounts
• Tange Modular dropouts. Stock setup is for 142mm thru-axle hubs and flat mount disc brakes. Alternative styles available thru Tange/Long Shen.
• Fork options: Matching straight blade carbon fork (alloy steerer, flat mount, 12 x 100 thru-axle hub) or lugged CrMo steel fork (CrMo steerer, IS disc mount, QR hub)
• Tire clearance for 700c x38mm with fenders (some front derailleurs will limit tire clearance) and 650b x 42mm
• Fits 1-1/8" headset (EC34/28.6|EC34/30 headsets)
- 27.2mm post size
Webshops and Bike shops
Related Products
-
Description
Straggler shares all of the Cross-Check's braze-ons for fenders, racks and bottle cages, and like the Cross-Check its ready to take you just about anywhere. It's a day tripper and a weekender. It's a 'rough road' road bike. It's a cyclocross bike with no pretense about racing. It's a utilitarian townie. It's a light-duty touring bike. It's an all-weather commuter. And when you get tired of one set up, you can swap parts around and turn it into something else.
- Fender eyelets at the dropouts, front and rear rack bosses and dual water bottle mounts, downtube shifter mounts
- 100% Surly proprietary 4130 chromoly tubing. TIG-welded, double-butted main triangle
- Forward-exiting horizontal dropouts with adjusters give you singlespeed compatibility and wheelbase adjustability to help you fit the tires and fenders you want to run with that drivetrain you want to run.
- Frame is ED Coated for increased life expectancyPOA -
Description

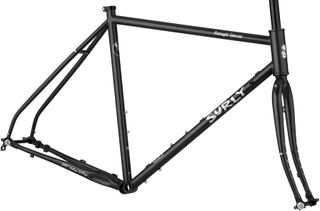

The Midnight Special is a road plus bike designed to provide comfort and speed on those all-day rides that extend well beyond fresh pavement. It excels on pot-holed, deteriorating pavement and the occasional long stretch of gravel. The Midnight Special’s 650b road plus tires eat up road chatter and absorb all the bumps in the road for a much more comfortable ride.
- 100% Surly 4130 CroMoly frame, main triangle is double-butted; 1-1/8" threadless CroMoly fork
- Rack, fender, and three sets of water bottle mounts
- Flat-Mount disc brakes
- 44mm head tube
- Tire Clearance: 27.5x2.35" (w/o fenders), 700c x 42mm (w/o fenders), 650b x 50 (w/ fenders), 700c x 38mm (w/ fenders)
- Front Axle: 12mm Thru x 100mm
- Rear Axle: 12mm Thru x 142mmExpected Date:02 February 2025POA -
Description
A class-leading touring bike, the newly redesigned Disc Trucker provides versatility and dependability on the daily commute or trans-continental excursion. Fork blade three-pack mounts enable you to attach and haul even more stuff, and the frame features a low bottom bracket and long chainstays for comfort and stability while loaded down. With increased stack height and improved stand-over clearance, plus ample space for larger tires and fenders, it’s designed to go the distance.
- 100% Chromoly steel frame and fork; double-butted main triangle and E.D. coating for increased frame life
- Braze-ons for fenders, racks, and almost anything else you might want to stick on your bike, plus spare spoke holders for when the road gets rough
- Fork blade three-pack mounts for even more mounting options, plus routing for Dynamo hubs
- Redesigned front and rear dropouts to accommodate captured 12mm thru-axles and flat-mount disc brakes
- Clearance for 26 x 2.1" tires with or without fenders
- Due to a performance issue, we have made a spec change to the front derailleur of the 26" Disc Trucker. A new derailleur will be included in the bike box along with the appropriate shims needed for proper installPOA -
Description

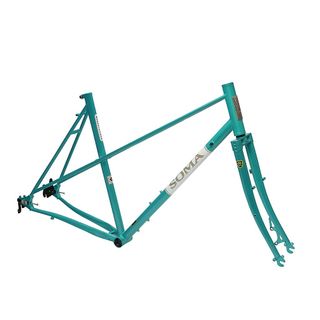

A true mixte frame with the double top tube/stays. Obviously offers lots of standover height and style as well. You’ll find the geometry is more sporty, than upright-comfy. Though it can be built up to suit either demeanor. Drop bars? Sure. Moustache bars? Of course.
The upgrade to fitting disc brakes opens this mixte to fitting many different widths of tires, so instead of being limited to 700c x 32mm road tires, you can experiment with a variety of gravel and touring tires as well.
– Tange Prestige heat-treated CrMo steel main tubes
– Sport touring geometry
– Matching lugged crown CrMo steel fork INCLUDED. Features low-rider pannier mounts.
– Rack and fender eyelets
– Tange/IRD Sliding dropouts allows for geared and single speed drivetrains
– 135mm hub spacing
– ISO disc mounts
– Fits 1-1/8? (EC34) external cup headset
– 27.2mm seatpost size
– 42, 50, 54, 58, 62cm (Center to top of seat collar)
– The 42cm size on the Rim Brake model uses 26? wheels, but all sizes of the Disc model will fit 700c wheels and fit tires as wide as 42mm. Though for smaller frames using 650b wheels will decrease toe overlap with the front wheel.
– Weight: Frame: 5.8 lbs(50cm) Fork: 2.35 lbs (350mm uncut steerer)
– In Teal MetallicPOA -
Description

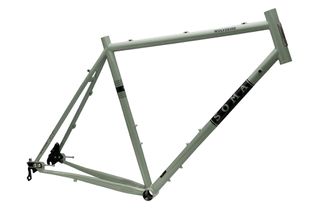

The Jawbone A-Type frame is the perfect platform to build drop bar mountain touring and bike packing rig.
