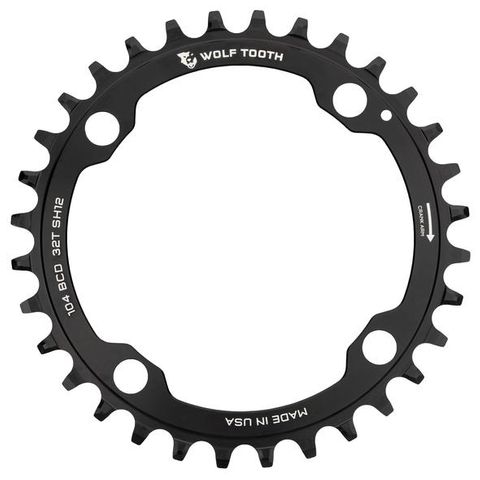

WOLF TOOTH 104 SHIMANO 12SPD CHAINRING
The new Shimano XTR, XT, and SLX 12spd Hyperglide+ chain works differently than other products on the market so Wolf Tooth engineers developed a completely new tooth profile to provide optimal chain retention and durability when using this new chain technology.
- Fits any 104 BCD crankset
- The new HG+ chain interacts with the chainring much differently than a traditional wide/narrow design. Wolf Tooth engineers spent the time to understand how the system works and design a new tooth profile that is optimized for this system.
- Engineered proprietary tooth profile maintains the quiet and smooth performance of the HG+ drivetrain with legendary Wolf Tooth chain retention.
- Prevents premature ring and chain wear that can come from non-optimized profiles.
Compatibility
- Fits any 104 BCD crankset
- Compatible with Shimano 12-speed Hyperglide+ chains
- Chainring Bolts: All tooth sizes require 1x bolts that are 6mm long.
104 x 32t, 34t, 36t, 38t use 6mm bolts.
If using a bashring you will need 8mm bolts (most stock bolts on 3x cranksets are 8mm)
- 104 BCD chainrings work on many older 2x Shimano crankset (XT, SLX, or Deore)
The new Shimano XTR, XT, and SLX 12spd Hyperglide+ chain works differently than other products on the market so Wolf Tooth engineers developed a completely new tooth profile to provide optimal chain retention and durability when using this new chain technology.
- Fits any 104 BCD crankset
- The new HG+ chain interacts with the chainring much differently than a traditional wide/narrow design. Wolf Tooth engineers spent the time to understand how the system works and design a new tooth profile that is optimized for this system.
- Engineered proprietary tooth profile maintains the quiet and smooth performance of the HG+ drivetrain with legendary Wolf Tooth chain retention.
- Prevents premature ring and chain wear that can come from non-optimized profiles.
Compatibility
- Fits any 104 BCD crankset
- Compatible with Shimano 12-speed Hyperglide+ chains
- Chainring Bolts: All tooth sizes require 1x bolts that are 6mm long.
104 x 32t, 34t, 36t, 38t use 6mm bolts.
If using a bashring you will need 8mm bolts (most stock bolts on 3x cranksets are 8mm)
- 104 BCD chainrings work on many older 2x Shimano crankset (XT, SLX, or Deore)
The new Shimano XTR, XT, and SLX 12spd Hyperglide+ chain works differently than other products on the market so Wolf Tooth engineers developed a completely new tooth profile to provide optimal chain retention and durability when using this new chain technology.
- Fits any 104 BCD crankset
- The new HG+ chain interacts with the chainring much differently than a traditional wide/narrow design. Wolf Tooth engineers spent the time to understand how the system works and design a new tooth profile that is optimized for this system.
- Engineered proprietary tooth profile maintains the quiet and smooth performance of the HG+ drivetrain with legendary Wolf Tooth chain retention.
- Prevents premature ring and chain wear that can come from non-optimized profiles.
Compatibility
- Fits any 104 BCD crankset
- Compatible with Shimano 12-speed Hyperglide+ chains
- Chainring Bolts: All tooth sizes require 1x bolts that are 6mm long.
104 x 32t, 34t, 36t, 38t use 6mm bolts.
If using a bashring you will need 8mm bolts (most stock bolts on 3x cranksets are 8mm)
- 104 BCD chainrings work on many older 2x Shimano crankset (XT, SLX, or Deore)
Webshops and Bike shops
Related Products
-
Description
The 102BCD chainring was made specifically for the XTR M960 crankset
- Only fits on the M960 crankset in the middle ring position
- Drop-Stop® technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- These rings only fit on the M960 crankset in the middle ring position
- For 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
- Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains.
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention)
- 6mm Chainring bolts needed
- Chainline: 50mm -
Description
Wolf Tooth was first to market with cyclocross 1x specific chainrings because we saw cyclocross as the perfect use for our patent pending Drop-Stop® technology. These beautifully machined 110 BCD asymmetric 4-bolt chainrings are optimized for your 1x Shimano CX / road / gravel drivetrain whether you run Dura Ace 9000, Ultegra 6800, 105 5800, or Tiagra 4700. They are also offset for the ideal 1x chainline.
- Fits 110 BCD Asymmetric 4-bolt Shimano cranks
- Drop-Stop technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- Fits 110 BCD asymmetric 4-bolt cranks
- Compatible with Dura Ace 9000, Ultegra 6800, 105 5800, Tiagra 4703, and Tiagra 4700
- Sizes 38T and larger are compatible with Dura Ace 9100, Ultegra 8000 and 105 R7000 but a slight modification is required due to a change in the crank arm profile. The 36T chainring will not work for this modification. Click here to review the process for the modification, which takes about 5 minutes to perform.
- Wolf Tooth inventory of SH110 chainrings all have the notch cut to fit the R7000, R8000, & R9100. Note: The 36 tooth chainring can not be modified, it is not be compatible.
- Confirmed modification fit with Dura Ace 9100 power meter in size 42t or larger
- Mounts in the big ring position of the cranks but is offset inward for perfect chainline.
- The stock 2x bolts will not work. You will need our 6mm bolts which are optimized for single ring mounting.
- Drivetrains: 1x9, 1x10, 1x11 and 1x12 drivetrains
Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains
Shimano 12-speed chains require the use of our Shimano 12-speed specific chainrings
If using a 9-speed drivetrain use a 10-speed chain. It fits tighter for better chain retention
- Chainline 47.5mm -
Description
Looking for a 1X chainring for your new Shimano XT, SLX or Deore crankset with the proven chain retention of our Drop-Stop® chainrings? Wolf Tooth has what you need in the form of a beautifully machined asymmetrical 96 mm BCD that provides the ideal 1X chainline of 49mm.
Compatibility
- These rings fit on the Shimano XT M8000, SLX M7000 or Deore M6000 1x or 2x cranksets
- Not compatible with Deore triple (3x) cranksets!
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Provide a great chainline on most Boost bikes. See this explanation for details.
- Standard crank chainline - (48 mm for 26-28T), (49 mm for 30-34T) and (50 mm for 36-38T)
- Boost crankset chainline - (52 mm for 30-34T) and (53 mm for 36-38T)
- 10mm bolts are optimized for mounting this ring -
Description
We designed these bolts to be the best on the market. These single chainring optimized bolts have a 4 mm hex socket on the bolt and a 6 mm hex socket on the nut so no spanner is needed. These are 6 mm long so they work perfectly with any bolt on single chainring that does not have threaded standoffs.
Compatibility
- Any of our bolt-on Drop-Stop® chainrings with through holes 110 BCD and 130 BCD
- Works with other brands single chainrings as well
Material: 7075-T6 aluminum
Size: M8 x.75 x 5
Torque spec: 7-8 NM tightening torque with light grease on threads only
Made in the USA -
Description
High quality, forged and CNC machined Narrow-Wide Chainring, designed with the SRAM 3 bolt direct mount fitting.
- 3mm Offset
