Soma Cr-Mo Chrome 1 230 Thread Str8 Lugd
Description

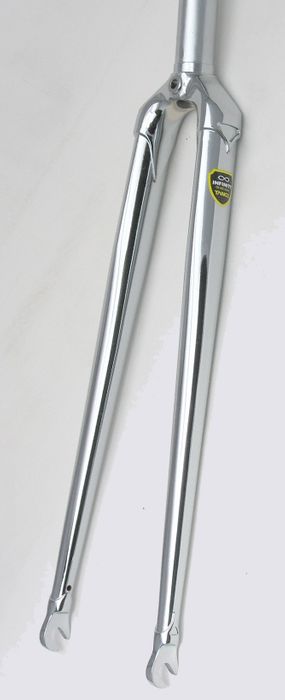

Soma Track Fork 1" Threaded Lugged Straight Blade
- Tange Infinity Tubing
- Sloping Lugged Crown
- 230mm steerer/50mm threads
- 41mm rake
- Axle to crown is 365mm.
- Accepts standard reach brakes. (Reminder: Order 1" for Rushes; 1-1/8" for Pakes)
Webshops and Bike shops
You may also be interested in...
-
Stock Code:SAFK-FK8256
The Firestarter Carbon fork is our high-end rigid bikepacking fork. This sure-tracking platform features a carbon structure and 15mm thru-axle design, and the Three-Pack mounts on the forward portion of each leg allow use of Salsa Anything Cages or extra waterbottle cages.
Axle to Crown Length: 483mm
Brake Type: Disc
S.H.I.S. Crown Race Diameter: 40
Fork Rake: 45mm
Front Axle Type: 15mm thru
Front Hub Spacing: 100mm
Material: Carbon
S.H.I.S. Clamp Diameter: 28.6
Steerer Tube Length: 260mm
Steerer Type: Tapered
Wheel Mount Center Offset: 0mm
Wheel Size: 29er, 29+, 700c
Triple-boss Anything Cage mounts on front of fork legsStock Level:Out Of StockStock Level:Out of Stock$1,250.00 (RRP)POA -
Stock Code:SAFK-FK8255
Crafted of Salsa Classico CroMoly, the CroMoto Grande delivers a great 29er ride with the performance of an included 15 x 100mm Maxle thru-axle. Suspension corrected for 80mm travel forks.
Axle to Crown Length: 468mm
Brake Type: Disc
Color: Black
Crown Race: 39.7mm
Defined Color: Black
Front Axle Type: 15mm thru
Front Hub Spacing: 100mm
Material: CroMoly
Offset: 45mm
S.H.I.S. Stem Clamp Diameter: 28.6mm
Steerer Tube Length: 300mm
Steerer Type: Tapered
Wheel Mount Center Offset: 0mm
Wheel Size: 29er, 700cStock Level:Out Of StockStock Level:Out of StockPOA -
Stock Code:WSFK-FK9936
The Whisky No.9 CX Flat Mount fork is a lightweight, forward-compatible front-end upgrade, ideal for cyclocross, singletrack, gravel, or commuting. Redesigned, thoroughly tested, and dialed in for rough, off-road riding, it features the flat-mount disc brake standard, easy fender mounts, 12mm thru-axle dropouts, and internal brake routing for a refined, clean design. The fork provides big tire clearance, precise handling and tracking capabilities, and a comfortable ride quality that Whisky forks are known for.
- 12mm thru-axle, 100mm spacing
- Designed for flat-mount disc brakes
- 700c x 42mm or 650b x 50mm max recommended tire size
- Fender eyelets on outside of fork leg for easy mounting
- ASTM Condition 3 – For rough off-road riding and jumps less than 24
- Includes thru-axle and Whisky Parts Co. compression plug
- 45mm Offset
- Axle to Crown 395mmStock Level:In StockStock Level:In Stock$800.00 (RRP)POA -
Stock Code:BTFK-4055822521406
Built to withstand the most unforgiving conditions our BPS (=BikePackingSteel) fork is made of proven Cr-Mo steel and fiftted with all mounts needed to kit out your front-end with lights, racks and cages. Meant to replace suspension forks on world-exploring MTBs it can fit a huge variety of bikes with 120-140mm suspension forks.
MATERIAL: Cr-Mo steel
STEERER: Tapered, 1-1/8" - 1-1/2", 300 mm Length
OFFSET: 51 mm
AXLE TO CROWN: 500 mm
BRAKE: Post Mount, Max. 203 mm rotor size
MOUNTS: Triple cage / Head light / Mudguards / Lowrider rack
EXTRA INFO: Triple cage mounts, through-hole lowrider mounts, drilled crown, max. load per cage mount: 4.5Kg
INCLUDED: Through-Axle, star nut, Cable port plugs
WEIGHT: 1694 g (incl. Through-axle, 10 mounting bolts, uncut steerer)
TYRE CLEARANCE: 27.5 x 3.0 / 29 x 3.0
ASTM RIDING CONDITION: 3
THROUGH-AXLE TYPE: 15 X 110 mm
TA TOTAL LENGTH (CLOSED): 135 mm
TA THREADING DIAMETER X PITCH: M15 X 1.5
MIN. THREAD LENGTH:14 mmStock Level:In StockStock Level:In Stock$550.00 (RRP)Add To Cart
-
Stock Code:SMFK231909
A tough unicrown fork option for the Soma Wolverine and other gravel/CX frames with a 1-1/8" headtube. Version 3 model has a new fork end design and adopts the flat mount disc standard.
– Tange Infinity CrMo
– Unicrown straight blade
– 405mm axle to crown
– 50mm rake
– Fit flat mount disc (160mm rotor - with adapter)
– Fits 700x45mm tires with fenders (this has slightly less clearance than the lugged crown fork)
– Triple bosses on fork leg to fit low rider pannier rack or cage
– 15 x 100mm thru-axle included
– Weight: 3.3 lbs (with uncut 350mm steerer and thru-axle bolts)Stock Level:In StockStock Level:In Stock$390.00 (RRP)Add To Cart
